Product Overview: LTC2234CUK#PBF from Analog Devices Inc.

The LTC2234CUK#PBF is a high-performance, low-power, 10-bit, 105Msps analog-to-digital converter (ADC) designed by Analog Devices Inc., a leader in high-performance signal processing solutions. This ADC is part of a family of pin-compatible converters with different resolution and speed options, providing flexibility and ease of design for a wide range of applications.

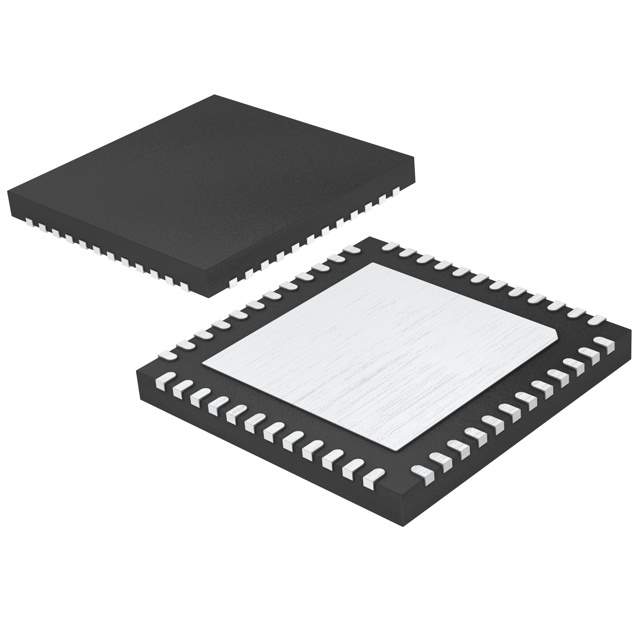

Encased in a compact 7mm x 7mm QFN-48 package, the LTC2234CUK#PBF is engineered to deliver exceptional dynamic performance with a 10-bit resolution at a sampling rate of up to 105 million samples per second. This makes it an ideal choice for demanding applications that require high data acquisition rates, such as medical imaging, communications systems, and digital data storage oscilloscopes.

The device operates from a single 3.3V supply, minimizing power consumption and making it suitable for portable and battery-powered equipment. Furthermore, it features a differential input range of ±1V, providing the flexibility to interface with various signal sources. Its input stage has been optimized to handle out-of-range input signals and maintain linearity, ensuring accurate performance even in the most challenging conditions.

The LTC2234CUK#PBF boasts an impressive signal-to-noise ratio (SNR) and spurious-free dynamic range (SFDR), ensuring high-quality signal conversion without unwanted noise or distortion. It also includes features like a shutdown mode that reduces power consumption when not in use, and a digital output randomizer to minimize digital feedback, which is particularly useful in reducing the system noise floor.

With its robust feature set, the LTC2234CUK#PBF is designed to meet the rigorous demands of high-speed data acquisition and signal processing. Analog Devices Inc. provides comprehensive support for this product, including detailed datasheets, reference designs, and technical support, ensuring that designers can integrate this ADC into their systems with confidence.

Key Features:

• 10-bit resolution
• 105Msps sampling rate
• Single 3.3V supply operation
• Differential input range: ±1V
• Compact 7mm x 7mm QFN-48 package
• Low power consumption with shutdown mode
• High SNR and SFDR for quality signal conversion
• Digital output randomizer to reduce system noise
