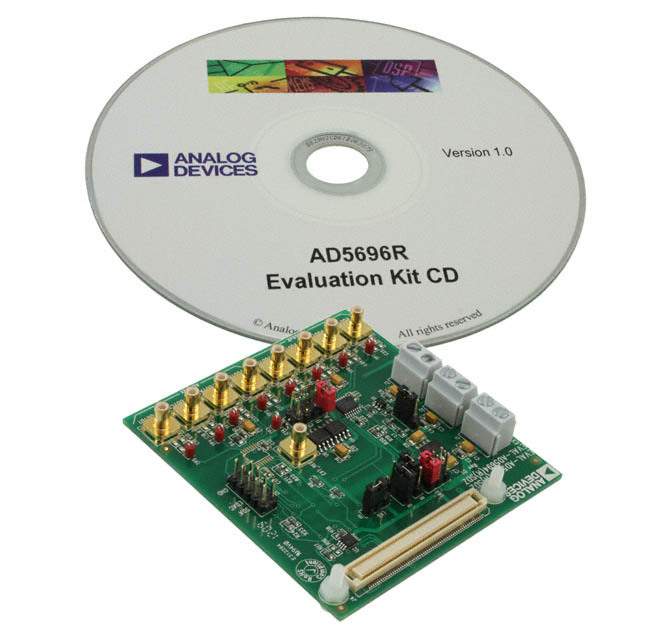

The EVAL-AD5696RSDZ from Analog Devices Inc. is a high-performance evaluation board designed for the AD5696R, a quad, 16-bit digital-to-analog converter (DAC) with on-chip output amplifiers and I2C interface. This evaluation board is an essential tool for designers and engineers to explore the features and capabilities of the AD5696R DAC, which is ideal for precision control applications in industrial and communication systems.

Key Features:

• Quad 16-Bit DAC: The board features the AD5696R DAC, which provides four 16-bit channels with high accuracy and low noise performance.
• On-Chip Reference: An on-chip 2.5 V, 2 ppm/°C reference voltage enables precise output control and reduces the need for external components.
• Easy-to-Use Interface: The I2C-compatible serial interface allows for straightforward connection to most microcontrollers or processors.
• Flexible Power Supply: The board operates from a single 2.7 V to 5.5 V power supply, making it versatile for a variety of system voltages.
• Output Buffer Amplifiers: Integrated output buffer amplifiers provide rail-to-rail output swing and high drive capacity.

Applications:

• Process Control and Automation
• Data Acquisition Systems
• Digital Gain and Offset Adjustment
• Programmable Voltage and Current Sources
• Portable Battery-Powered Instruments

The EVAL-AD5696RSDZ evaluation board comes with a user-friendly software package that enables easy configuration of the DAC features. Users can set up the DAC output values, monitor the performance, and experiment with different settings, all through a graphical user interface (GUI). The board's layout is designed to facilitate probing and signal integrity, ensuring accurate measurements during testing.

Overall, the EVAL-AD5696RSDZ is an excellent platform for developing and testing applications that require high precision analog output. Its combination of features, ease of use, and support from Analog Devices Inc. makes it a valuable asset for any development team working with advanced DAC technology.
