ADM1270ACPZ-R2: High-Voltage Input Protection Device

The ADM1270ACPZ-R2 is a cutting-edge protection device manufactured by Analog Devices Inc., designed to safeguard your system from high-voltage input surges and other related electrical anomalies. This robust component is an essential addition to any design requiring reliable power supply protection, particularly in industrial, communications, and server applications.

Key Features

• Wide Operating Voltage Range: The device is capable of handling input voltages from 3.5V to 60V, making it incredibly versatile for various applications.
• Adjustable Overvoltage Protection: Users can set the overvoltage protection threshold as per their requirements, thus ensuring tailored protection for their specific circuits.
• Under-Voltage Lockout (UVLO): This feature prevents system operation at voltages that are insufficient to maintain proper performance, thereby avoiding potential damage.
• Reverse Voltage Protection: The ADM1270ACPZ-R2 automatically disconnects the load in the event of an input voltage reversal, which is critical for preventing damage to the system.
• Charge Pump for Enhanced Gate Drive: The integrated charge pump ensures that the external N-channel MOSFET operates efficiently, enhancing the overall protection mechanism.
• Power Good (PG) Output: This output signal can be used for downstream load enable or as a processor interrupt, providing real-time status of the power supply health.
• Thermal Shutdown: The device includes a thermal shutdown feature to prevent overheating, thereby increasing the reliability and longevity of the system.

Package and Reliability

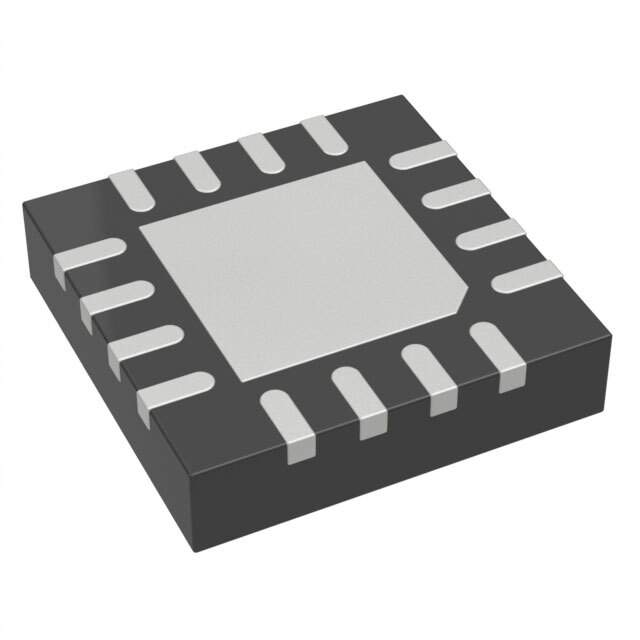

The ADM1270ACPZ-R2 comes in a compact 16-lead LFCSP (Lead Frame Chip Scale Package), which is ideal for space-constrained applications. The package is designed for optimal thermal performance, ensuring the device operates within safe temperature ranges even under high power conditions. With its built-in reliability features, the ADM1270ACPZ-R2 is an excellent choice for systems that cannot afford downtime or failure.

Applications

Due to its robust protection capabilities and wide operating voltage range, the ADM1270ACPZ-R2 is suitable for a variety of applications, including:

• Telecommunications Equipment
• Industrial and Factory Automation Systems
• Networking and Data Communication Hardware
• Server and Storage Systems
• Power Supply Modules

With the ADM1270ACPZ-R2, Analog Devices Inc. offers a powerful solution for protecting sensitive electronics against voltage transients, ensuring system stability and integrity in demanding environments.
