Analog Devices Inc. ADA4075-2ACPZ-R7 Overview

The ADA4075-2ACPZ-R7 from Analog Devices Inc. is a high-performance, dual-channel operational amplifier (op-amp) that delivers precision and low noise in a variety of applications. This op-amp is designed to offer a perfect balance between cost and performance, making it an ideal choice for applications requiring accurate signal conditioning without compromising on budget.

Key Features

• Precision Performance: With its low offset voltage and low input bias current, the ADA4075-2ACPZ-R7 ensures high accuracy in measurement and signal processing tasks.
• Low Noise: The device exhibits excellent low noise characteristics, which makes it suitable for audio applications and other sensitive instrumentation where noise can be a critical factor.
• Wide Supply Range: The op-amp operates over a wide supply voltage range, accommodating various power supply configurations and allowing for flexible circuit design.
• Dual-Channel: As a dual op-amp, it provides two independent amplifiers in one package, saving space and reducing component count in dual-channel applications.

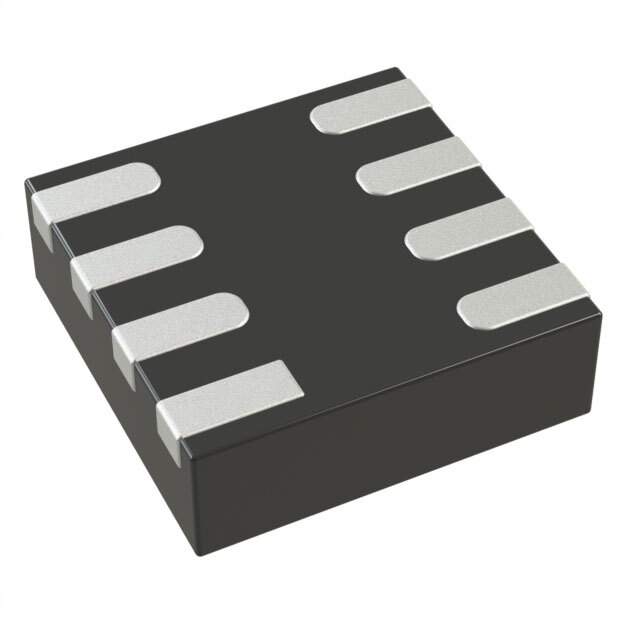

• Robust Packaging: The ADA4075-2ACPZ-R7 comes in a compact LFCSP (Lead Frame Chip Scale Package), which is known for its reliability and thermal performance, as well as for its space-saving footprint.

Applications

The ADA4075-2ACPZ-R7 is versatile and can be employed in a wide array of applications, including but not limited to:

• Instrumentation amplifiers
• Precision filters
• Audio processing
• Data acquisition systems
• Active filters
• Buffer amplifiers

Product Specifications

Here are some of the technical specifications of the ADA4075-2ACPZ-R7:

• Package: LFCSP (Lead Frame Chip Scale Package)
• Number of Channels: 2
• Temperature Range: Specified over the extended industrial temperature range (-40°C to +125°C)
• Supply Voltage Range: Specified for both single and dual supply configurations

With its combination of features, the ADA4075-2ACPZ-R7 from Analog Devices Inc. is a solid choice for designers looking for a reliable, high-fidelity op-amp that can fit into compact spaces while delivering exceptional performance.
