The AD9691BCPZ-1250 is a state-of-the-art analog-to-digital converter (ADC) developed by Analog Devices Inc., a leader in high-performance signal processing solutions. This ADC is designed to cater to the demanding needs of modern data acquisition systems, offering exceptional performance and accuracy.

Key Features

• High Sampling Rate: The AD9691BCPZ-1250 boasts a sampling rate of 1.25 GSPS (giga-samples per second), providing high-speed data conversion that is ideal for advanced applications such as wireless communication, radar systems, and instrumentation.
• Resolution: With 14-bit resolution, this ADC offers fine quantization levels, resulting in high-fidelity signal representation and improved signal-to-noise ratio (SNR).
• Input Bandwidth: The device features an input bandwidth that allows for the digitization of input signals with frequencies up to several hundred MHz, making it suitable for high-frequency signal processing tasks.
• Integrated Features: The AD9691BCPZ-1250 includes features such as an on-chip buffer and a sample-and-hold circuit, which reduce the complexity of system design and improve performance.
• Low Power Consumption: Despite its high-speed operation, the device maintains low power consumption, which is critical for portable and battery-operated applications.

Applications

The versatility of the AD9691BCPZ-1250 makes it suitable for a wide range of applications, including:

• Wireless infrastructure (LTE, WCDMA, GSM)
• Direct RF sampling
• Software-defined radios
• Test and measurement equipment
• Radar and satellite communication systems

Package and Quality

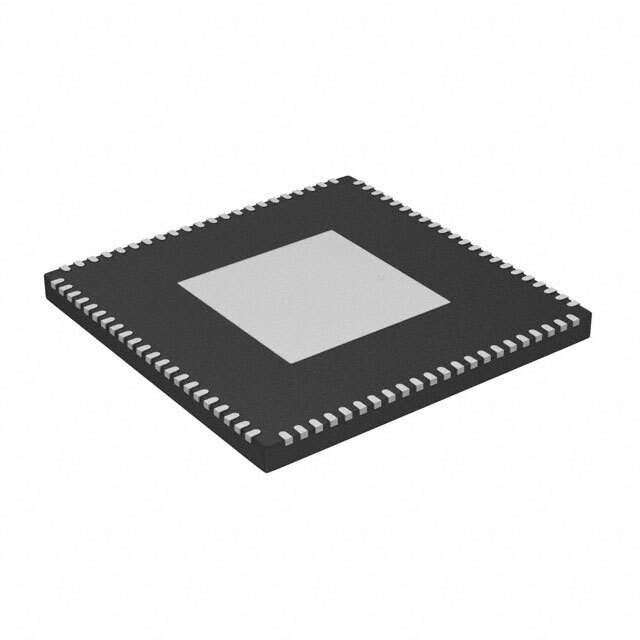

The AD9691BCPZ-1250 is offered in a compact LFCSP (lead frame chip scale package) that is designed for space-constrained applications. Analog Devices Inc. ensures that each unit meets rigorous quality standards, providing reliable and consistent performance in the field.

For engineers and designers looking for an ADC that delivers high-speed, accurate data conversion with a host of integrated features, the AD9691BCPZ-1250 from Analog Devices Inc. represents an excellent choice that can meet and exceed the requirements of even the most challenging applications.
