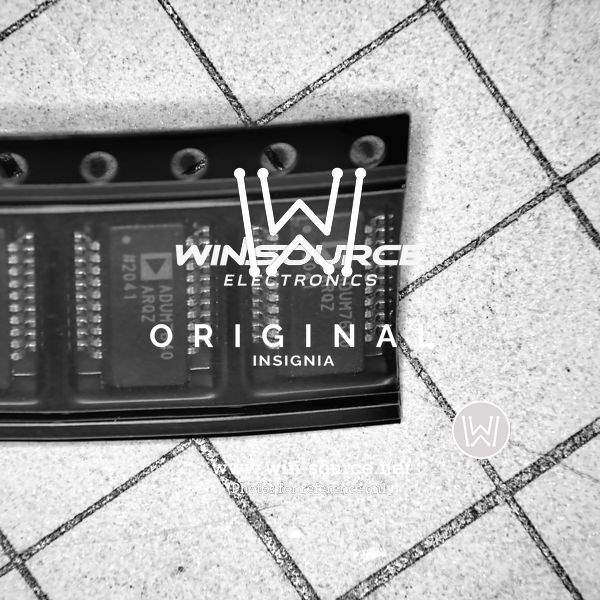

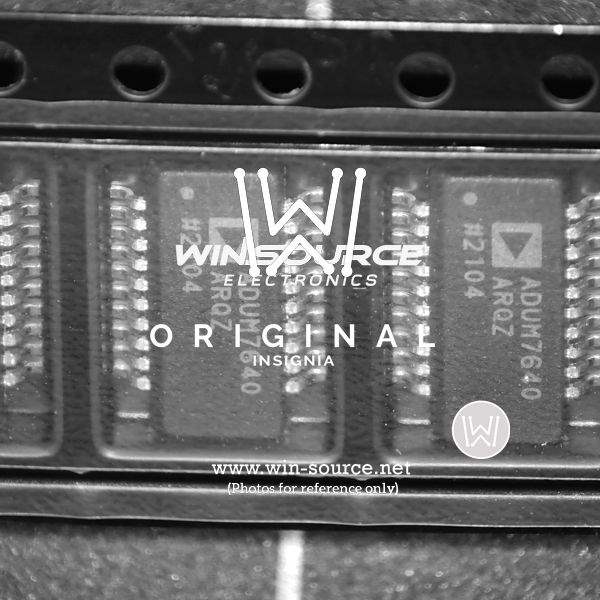

ADUM7640ARQZ - Analog Devices Inc.

The ADUM7640ARQZ is a high-performance, quad-channel digital isolator from Analog Devices Inc., designed to offer outstanding signal integrity and isolation for a wide variety of applications. This component is part of ADI's iCoupler® family, which utilizes chip-scale transformer technology to achieve magnetic isolation, allowing for high-speed data transfer while maintaining electrical isolation between the input and output sides.

Key Features:

• Isolation Channels: The device features four independent isolation channels, providing flexibility in interfacing between different voltage domains.
• Data Rate: Capable of supporting data rates up to 10 Mbps, the ADUM7640ARQZ is suitable for high-speed communication protocols.
• Isolation Voltage: With an isolation voltage rating of 2500 V RMS, it ensures reliable operation and protection in high-voltage environments.
• Low Power Consumption: The device is optimized for low power operation, making it ideal for power-sensitive applications.
• Package: Housed in a 16-lead QSOP package, it offers a compact footprint for space-constrained applications.
• Temperature Range: The operational temperature range from -40°C to +125°C allows the device to perform reliably in extreme conditions.

Applications:

The ADUM7640ARQZ is a versatile component that can be used in various applications, including:

• Industrial automation and control systems
• Data acquisition systems
• Medical equipment with stringent isolation requirements
• Power supply control and monitoring
• Isolated sensor interfaces

With its robust design and high isolation capabilities, the ADUM7640ARQZ from Analog Devices Inc. is an excellent choice for engineers looking to enhance system safety and signal integrity in their electronic designs. The device's proven performance and reliability make it a go-to solution for applications demanding high-speed data transfer and electrical isolation.
