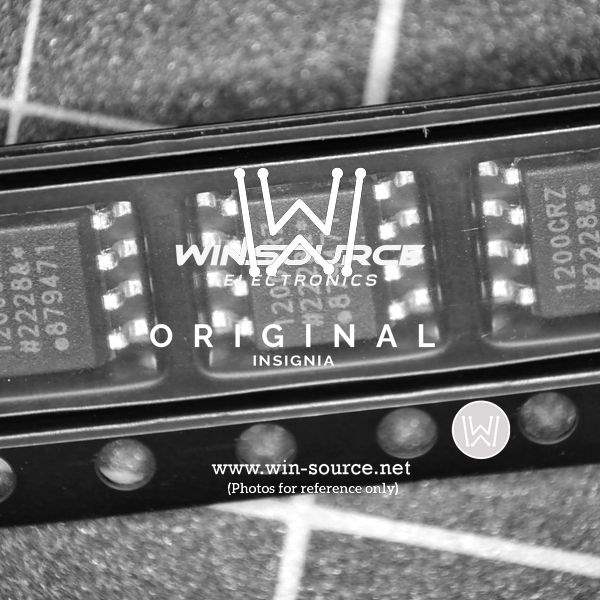

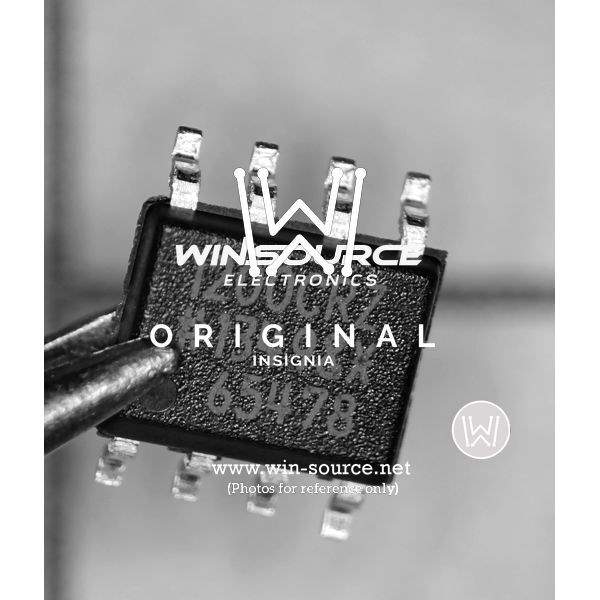

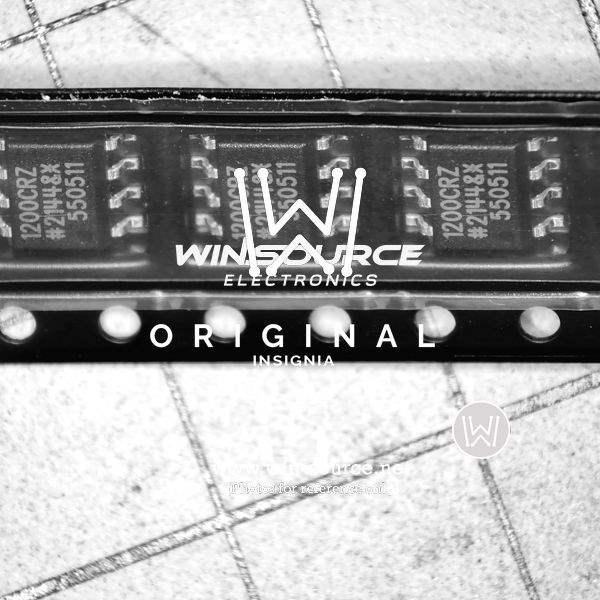

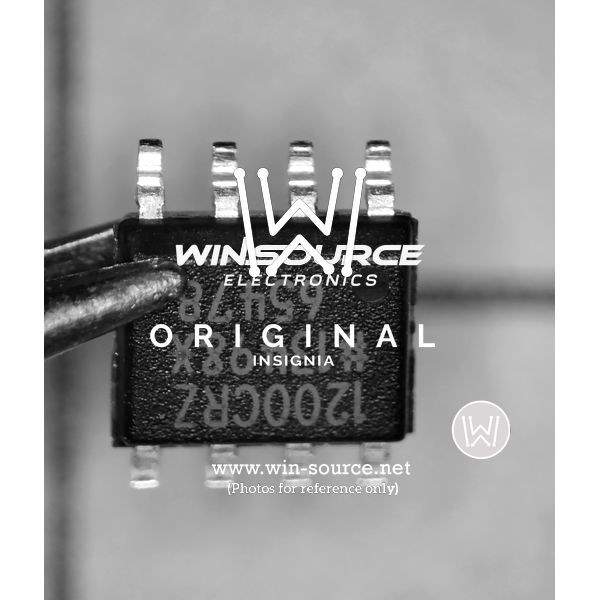

Product Overview: ADUM1200CRZ-RL7

The ADUM1200CRZ-RL7 is a highly integrated, high-speed digital isolator manufactured by Analog Devices Inc. It offers outstanding performance and reliability for a wide range of applications where electrical isolation is required, particularly in the industrial, medical, and telecommunications sectors. This component is part of the ADUM1200 series, which is known for its use of iCoupler® technology to combine high-speed CMOS and monolithic air-core transformer technology, enabling the transfer of digital signals across an isolation barrier while maintaining a high level of safety and insulation.

Key Features:

• Isolation Voltage: The device provides a robust isolation voltage of 2500 Vrms, ensuring safe operation in high-voltage environments and compliance with industry safety standards.
• Data Rate: It supports a high data rate of up to 10 Mbps, making it suitable for applications that require fast data transmission without compromising signal integrity.
• Channels: The ADUM1200CRZ-RL7 features two independent isolation channels, facilitating bidirectional communication in a compact form factor.
• Power Supply: With a wide power supply range of 2.7V to 5.5V, this digital isolator can be easily integrated into various system voltage levels.
• Package: It comes in a 8-lead SOIC package, which is known for its small size and suitability for space-constrained applications.
• Temperature Range: The operating temperature range of -40°C to +125°C ensures reliable performance across diverse environmental conditions.

Applications:

The ADUM1200CRZ-RL7 is versatile and can be used in various applications, including:

• Industrial control systems
• Isolated SPI and I²C interfaces
• Medical equipment with patient electrical isolation
• Isolated sensor interfaces and data acquisition systems
• Telecommunications equipment

With its combination of high-speed operation, electrical isolation, and ease of integration, the ADUM1200CRZ-RL7 from Analog Devices Inc. is an excellent choice for designers looking to enhance system safety and performance.
