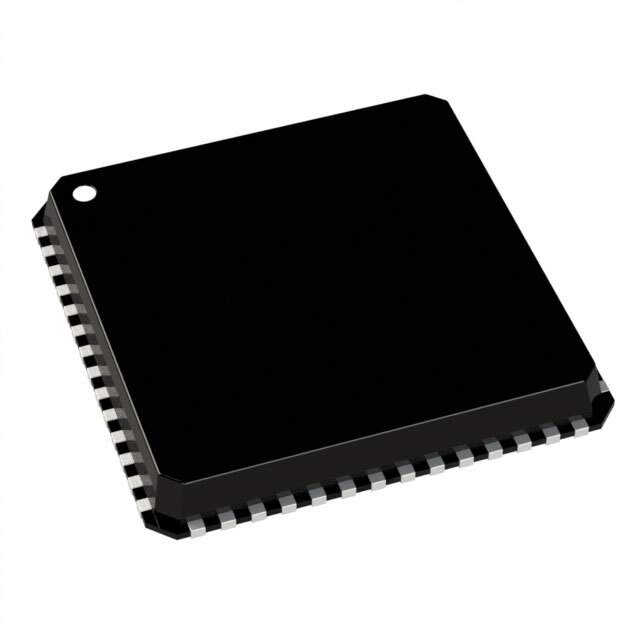

The ADUC842BCPZ32-5 is a fully integrated, 1 MSPS, 12-bit data acquisition system from Analog Devices Inc. that features a high-performance multichannel analog-to-digital converter (ADC), a 62 kB Flash/EE memory, and an 8-channel multiplexer. This precision analog microcontroller is designed to operate at a nominal voltage of 5V and comes in a compact 48-lead LFCSP package, making it an ideal choice for a wide range of applications in industrial, instrumentation, and control systems.

Key Features:

• High-Resolution ADC: The device boasts a 12-bit successive approximation ADC with a fast sampling rate of up to 1 MSPS, ensuring accurate and rapid data acquisition.
• On-Chip Memory: Equipped with 62 kB of non-volatile Flash/EE memory, the ADUC842BCPZ32-5 allows for easy in-system programming and data storage, facilitating firmware updates and calibration data retention.
• Flexible I/O: The microcontroller provides a variety of I/O options including digital I/O pins, serial I/O ports such as UART, SPI, and I²C compatible interfaces, enhancing system connectivity and peripheral control.
• Dual 12-Bit DACs: Two on-chip 12-bit digital-to-analog converters enable precise analog output capabilities, which can be used for actuator control or as a programmable reference for the ADC.
• Temperature Sensor: An integrated temperature sensor allows for temperature monitoring and compensation, critical for applications requiring thermal stability.
• Power Management: The device features power-saving modes, including a power-down mode and a standby mode, to optimize power consumption for battery-powered or energy-sensitive applications.

Applications:

The ADUC842BCPZ32-5 is suited for a diverse range of applications, such as:

• Process Control and Smart Sensing
• Instrumentation and Measurement Systems
• Industrial Automation and Control
• Data Acquisition Systems
• Portable Devices

Summary:

The Analog Devices ADUC842BCPZ32-5 MicroConverter® is a robust, high-speed, precision data acquisition system that combines an ADC, DACs, and a microcontroller with extensive memory and I/O options. Its integrated features and compact size make it a versatile solution for a myriad of applications requiring high-resolution analog and digital conversion, alongside powerful processing capabilities.
