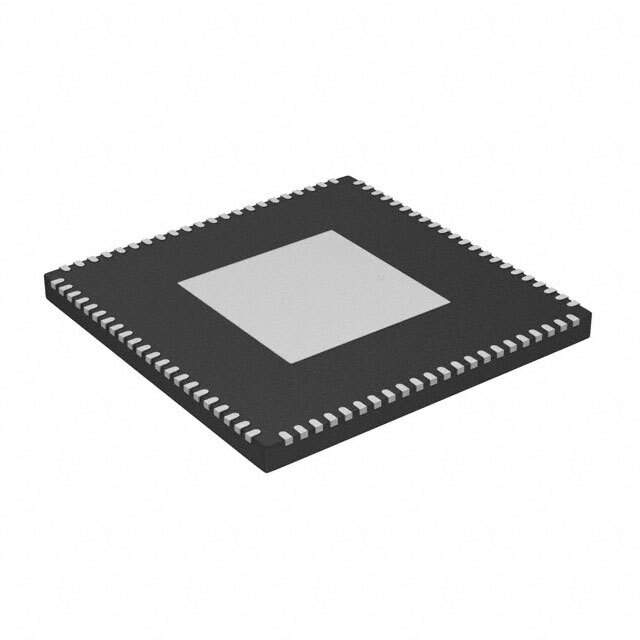

ADSP-BF706KCPZ-3: High-Performance Digital Signal Processor

The ADSP-BF706KCPZ-3 is a cutting-edge digital signal processor (DSP) from Analog Devices Inc., designed to deliver superior performance for a wide range of signal processing applications. This processor is part of the Blackfin family of products, which are renowned for their combination of processing power, low power consumption, and integrated peripherals.

At the heart of the ADSP-BF706KCPZ-3 is a high-performance 400MHz core, featuring a dual-MAC state-of-the-art signal processing engine. This allows the processor to handle complex algorithms and processing tasks with ease, making it ideal for applications such as audio and video processing, industrial control, instrumentation, and automotive systems.

One of the key features of this DSP is its 128KB L1 SRAM, which allows for fast and efficient data access. Additionally, it is equipped with 1MB of L2 SRAM, providing ample space for larger data sets and buffering requirements. The memory architecture is optimized to deliver high-speed data transfers and minimal latency, which is crucial for real-time processing applications.

The ADSP-BF706KCPZ-3 also offers a rich set of peripherals, including a multi-channel audio serial port (SPORT) that supports I2S and other audio interfaces, a serial peripheral interface (SPI), two-wire interface (TWI) compatible with I2C, and UART for serial communication. These interfaces enable the DSP to connect with a variety of external devices and sensors, further enhancing its versatility.

For connectivity, the processor features an Ethernet MAC with IEEE 1588 support, enabling precise synchronization over network connections. This is particularly useful in industrial automation and control systems where timing is critical.

Security is also a consideration in the design of the ADSP-BF706KCPZ-3, incorporating a secure boot and cryptography features to ensure the integrity and confidentiality of code and data.

With its low operating voltage of 0.95V to 1.32V and advanced power management techniques, the ADSP-BF706KCPZ-3 is energy efficient, making it suitable for portable and battery-powered devices.

Overall, the ADSP-BF706KCPZ-3 from Analog Devices Inc. is a robust and flexible DSP solution that offers the performance and features necessary to meet the demands of modern signal processing applications.
