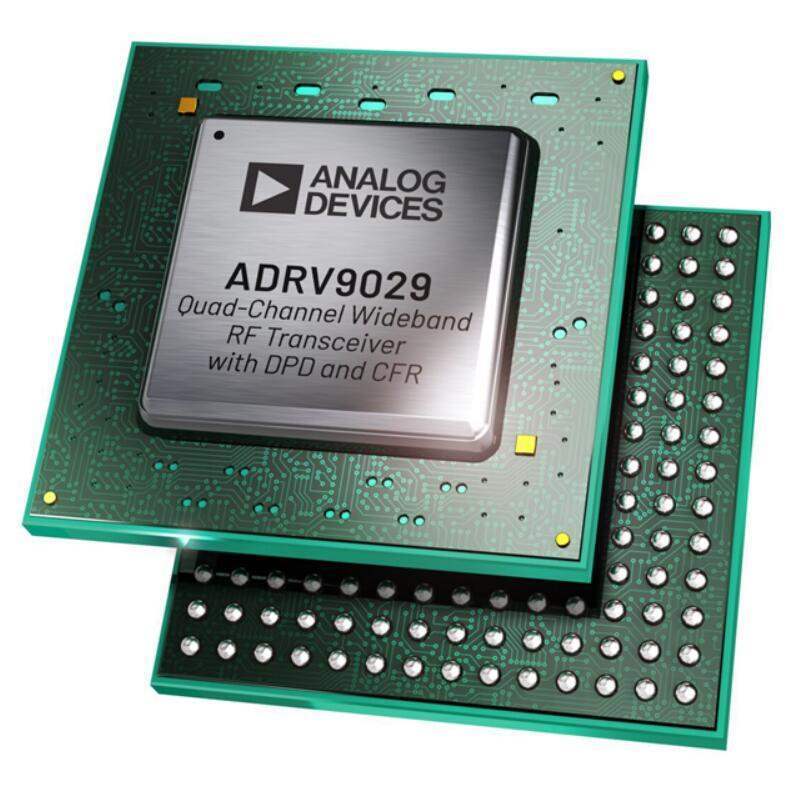

The ADRV9029BBCZ from Analog Devices Inc. is a highly integrated, RF transceiver that is designed to deliver exceptional performance in a wide range of applications, including wireless infrastructure, test and measurement, and satellite communications. This versatile component is part of the cutting-edge ADRV902x family known for its ability to provide comprehensive solutions for advanced radio systems.

Key Features

• Wide Frequency Range: The ADRV9029BBCZ operates across a broad frequency spectrum, making it suitable for various communication standards.
• High Integration: This transceiver integrates multiple functions including dual transmitters, dual receivers, synthesizers, and digital signal processing capabilities, reducing the need for additional components and simplifying design.
• Advanced Signal Processing: Equipped with sophisticated digital signal processing, the ADRV9029BBCZ offers features such as digital upconversion and downconversion, which enhances signal quality and system performance.
• Configurability: Users can configure the device via a serial port interface, providing flexibility and ease of use for system integration.
• Energy Efficient: The ADRV9029BBCZ is designed with power efficiency in mind, which is crucial for battery-powered devices and for reducing overall system power consumption.

Applications

The ADRV9029BBCZ is ideal for a variety of applications, including:

• 4G/5G wireless infrastructure
• MIMO (Multiple Input, Multiple Output) systems
• Phased array radar systems
• Electronic warfare
• Test and measurement equipment
• Satellite communications terminals

Technical Specifications

The device boasts an impressive set of technical specifications, ensuring reliable and high-quality performance:

• Frequency Range: 75 MHz to 6 GHz
• Output Power: Configurable
• Channels: Dual Tx and Dual Rx
• Interface: Serial Port Interface (SPI)
• Package: 14 mm × 14 mm, 196-ball chip scale BGA package

The ADRV9029BBCZ by Analog Devices Inc. represents a pinnacle of innovation in RF transceiver technology, offering a compact, highly integrated solution for complex RF systems.
