ADRF5042BCCZN by Analog Devices Inc.

The ADRF5042BCCZN is a state-of-the-art RF switch designed and manufactured by Analog Devices Inc., a leader in high-performance analog technology. This product offers exceptional performance in a compact package, making it an ideal choice for a wide range of RF applications.

Key Features

• Frequency Range: The ADRF5042BCCZN operates over a broad frequency range from DC to 44 GHz, providing versatile use across multiple RF applications, including wireless infrastructure, test equipment, and microwave radios.
• Low Insertion Loss: With an insertion loss of typically 1.7 dB at 30 GHz, this switch ensures minimal signal attenuation, making it suitable for high-frequency signal paths.
• High Isolation: Boasting high isolation of 30 dB at 30 GHz, the ADRF5042BCCZN prevents signal leakage between ports, which is critical for maintaining signal integrity in complex RF systems.
• Non-Reflective Design: The switch offers a non-reflective design with 50-ohm matched ports, ensuring minimal reflections and compatibility with standard impedance systems.
• High Linearity: Exhibiting an Input IP3 of 48 dBm, the device maintains signal fidelity by reducing third-order intermodulation products.
• Single Control Voltage: The switch can be controlled using a single positive control voltage ranging from 0 to +5V, simplifying the control interface and reducing power supply requirements.

Package and Quality

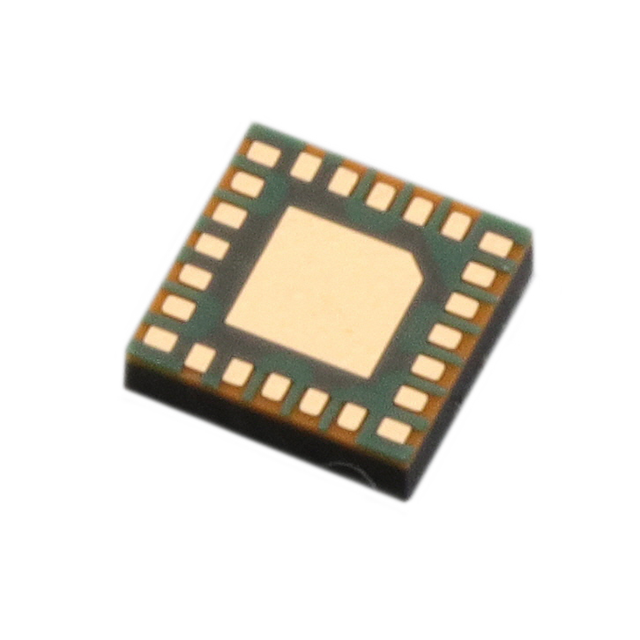

The ADRF5042BCCZN comes in a compact, 24-lead, 4 mm × 4 mm LGA package that is RoHS compliant and compatible with standard SMT processes, making it easy to integrate into existing designs. Analog Devices Inc. ensures high manufacturing standards, providing reliability and performance consistency that engineers can trust for their critical applications.

Applications

With its superior RF performance, the ADRF5042BCCZN is well-suited for a variety of applications, including but not limited to:

• RF and microwave communication systems
• Phased array antennas
• Test equipment and instrumentation
• Aerospace and defense electronics
• 5G wireless infrastructure

For engineers and designers looking for a high-performance RF switch that delivers both versatility and reliability, the ADRF5042BCCZN from Analog Devices Inc. is an excellent choice that meets the demanding requirements of today's advanced RF systems.
