The ADP196ACPZN-R7 is a high-performance, single-channel power switch IC designed and manufactured by Analog Devices Inc., a leader in the semiconductor industry. This integrated circuit is specifically tailored for power management applications and is an essential component for modern electronic systems requiring efficient power distribution and control.

Key Features

• Low On-Resistance: The device features a low on-resistance of typically 92 mΩ, ensuring minimal voltage drop and power loss across the switch, which is crucial for maintaining efficiency in power-sensitive designs.
• Input Voltage Range: The ADP196ACPZN-R7 operates over a broad input voltage range of 1.2V to 3.6V, making it versatile for various low-voltage applications.
• High Current Capability: It can handle continuous output currents up to 1.2A, accommodating a range of power-hungry devices.
• Built-in Overcurrent Protection: The power switch includes overcurrent protection, which safeguards the device and downstream components from damage due to excessive currents.
• Thermal Shutdown: An integrated thermal shutdown feature prevents overheating, enhancing the longevity and reliability of both the IC and the system it is used within.
• Under-Voltage Lockout (UVLO): The UVLO function ensures that the switch remains off if the input voltage drops below a certain threshold, preventing erratic operation.

Applications

The ADP196ACPZN-R7 is ideal for a wide range of applications where efficient power switching is required. It is commonly used in:

• Portable and battery-powered devices
• Smartphones and tablets
• Wireless and networking equipment
• Healthcare and medical instruments
• Wearables and IoT devices

Package and Availability

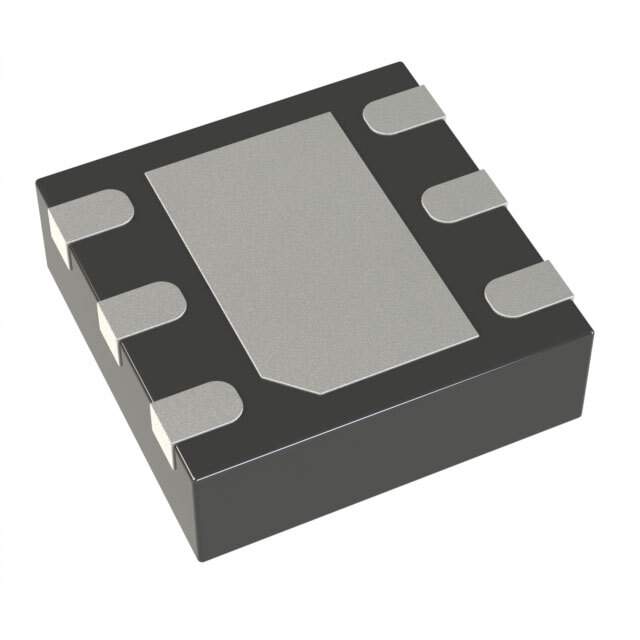

The device is available in a compact 6-lead 1.6 mm x 1.6 mm LFCSP package, which is suitable for space-constrained applications. The "-R7" suffix indicates that the product is offered in a 7" reel, accommodating automated manufacturing processes. Analog Devices Inc. ensures availability and support for the ADP196ACPZN-R7, providing detailed technical documentation and application assistance for designers and engineers.
