The ADP1877ACPZ is a high-performance synchronous step-down DC-to-DC controller from Analog Devices Inc., designed to drive N-channel MOSFETs in a wide range of power conversion applications. This controller is well-suited for creating efficient and reliable power solutions in various electronic devices, including computing, networking, and industrial systems.

Key Features:

• Wide Input Voltage Range: The device operates with an input voltage range from 2.75 V to 20 V, making it versatile for different power supply configurations.
• Adjustable Output Voltage: The output voltage can be precisely adjusted to meet the needs of the application, ensuring compatibility with a variety of loads.
• High Efficiency: Its synchronous operation allows for reduced power losses and improved efficiency, which is critical for maintaining thermal performance in compact designs.
• Programmable Switching Frequency: The switching frequency is programmable from 300 kHz to 1.5 MHz, allowing designers to optimize the size of external components and the performance of the power supply.
• Current Mode Control: The ADP1877ACPZ uses current mode control for excellent line and load transient response, ensuring stable operation under varying conditions.
• Integrated Bootstrapped High-Side Driver: The device includes an integrated high-side driver, which simplifies the design by reducing the need for additional external components.
• Power Saving Mode: A power-saving mode enhances efficiency at light loads, which is essential for battery-powered applications to extend battery life.
• Protection Features: It comes with a host of protection features including overvoltage protection, undervoltage lockout, and thermal shutdown, ensuring safe operation under abnormal conditions.

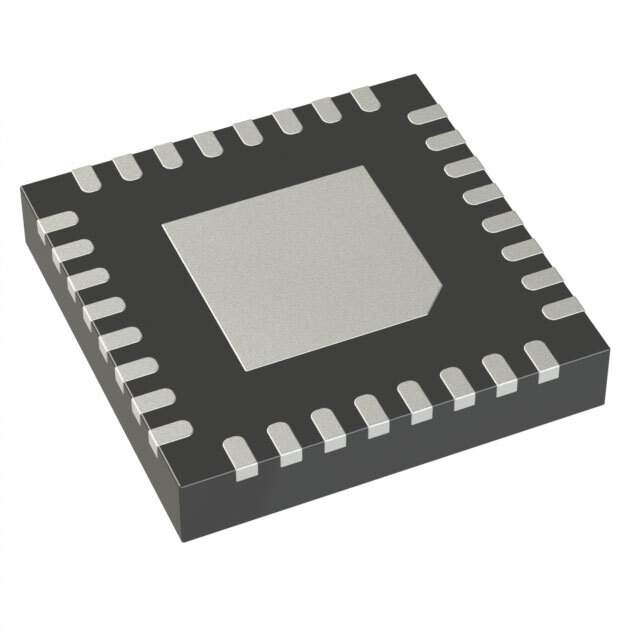

• Compact Package: The ADP1877ACPZ is available in a compact LFCSP (Lead Frame Chip Scale Package) that is ideal for space-constrained applications.

Applications:

The ADP1877ACPZ is an ideal choice for a broad range of applications, such as:

• Point of Load (POL) conversions
• Networking and telecommunication equipment
• Servers and storage systems
• Industrial and instrumentation platforms
• Graphics and video cards

With its combination of flexibility, efficiency, and protection features, the ADP1877ACPZ stands out as a robust controller for modern power management challenges.
