Product Overview: ADP150ACBZ-3.3-R7

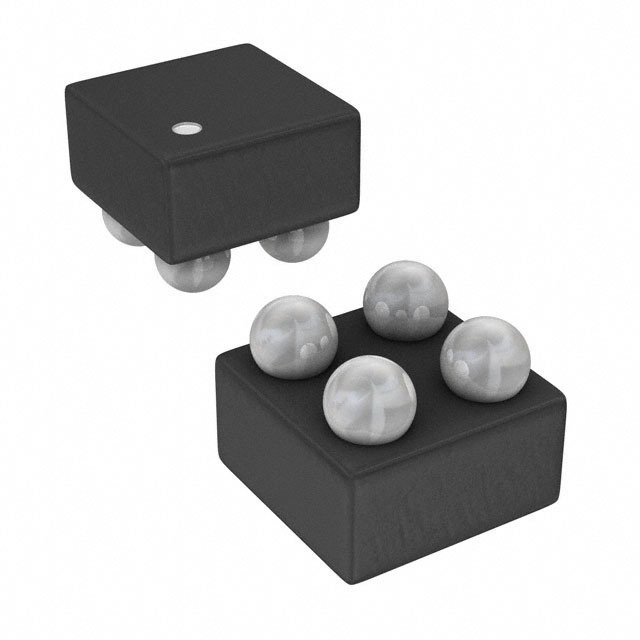

The ADP150ACBZ-3.3-R7 is a high-performance, low-dropout linear regulator designed and manufactured by Analog Devices Inc., a leader in high-performance analog technology. This particular model offers a fixed output voltage of 3.3V and is capable of delivering up to 150 mA of output current. The device is housed in a compact, 4-lead SC-70 package, making it an ideal choice for space-constrained applications.

Key Features

• Output Voltage: Fixed 3.3V with high accuracy.
• Output Current: Capable of delivering 150 mA, suitable for powering small to medium-sized devices.
• Low Dropout Voltage: Ensures efficient operation even when the input voltage is close to the output voltage.
• High PSRR (Power Supply Rejection Ratio): Provides stable output despite variations in input voltage, which is crucial for sensitive RF and analog circuits.
• Low Quiescent Current: Optimizes power efficiency, making it ideal for battery-powered applications.
• Thermal Overload Protection: Guards the device against damage due to overheating.
• Short-Circuit Protection: Offers safety and reliability by protecting the regulator and the load from faults.
• No-Bypass Capacitor Required: Simplifies design and reduces external component count.
• Package: Available in a small 4-lead SC-70 package.

Applications

The ADP150ACBZ-3.3-R7 is versatile and can be used in a wide range of applications, including:

• Portable and battery-powered devices
• Wireless communication systems
• Medical devices
• Cameras and audio devices
• Microcontroller or microprocessor power supplies

Quality and Reliability

Analog Devices Inc. is known for their commitment to quality and reliability, and the ADP150ACBZ-3.3-R7 is no exception. This linear regulator is designed to meet the stringent requirements of various industries, ensuring stable performance and a long operational lifespan for the end product.

With its combination of efficiency, precision, and compact packaging, the ADP150ACBZ-3.3-R7 from Analog Devices Inc. stands out as an excellent power management solution for designers looking to optimize their systems for both performance and space.
