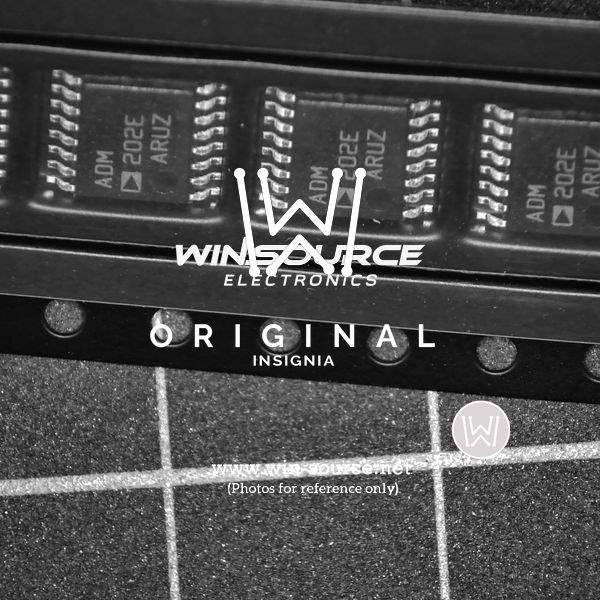

ADM202EARUZ Transceiver by Analog Devices Inc.

The ADM202EARUZ is a robust, high-speed transceiver designed to operate as an interface between a digital communication controller and a transmission medium. Manufactured by Analog Devices Inc., a leader in high-performance analog, mixed-signal, and digital signal processing integrated circuits, this product is part of their extensive range of interface components that are known for reliability and precision.

Key Features

• Meets EIA-232 E and V.28 specifications
• Operates from a single 5 V power supply
• Up to 0.2 A output current on driver
• ±15 kV ESD protection on RS-232 input/output pins
• Low power shutdown mode with receiver active (ADM202)
• 24 Mbps data rate
• Two drivers and two receivers

Applications

The ADM202EARUZ is ideal for a broad array of applications where reliable data transmission is required. Its high data rate and ESD protection make it suitable for:

• Point of sale terminals
• Peripherals
• Factory automation
• Data communication systems
• Industrial/process control networks

Product Description

This transceiver is housed in a TSSOP-16 package, providing a compact solution for space-constrained applications. The ADM202EARUZ operates over a temperature range of -40°C to +85°C, ensuring reliable performance in harsh environments. Its integrated charge pump circuitry generates the necessary RS-232 voltage levels from a single 5 V supply, reducing the need for multiple power supplies and simplifying design.

With its advanced protection features, the ADM202EARUZ is engineered to withstand electrostatic discharge events, enhancing the durability of the end product. Its low power shutdown mode allows for power conservation in battery-powered devices, while still permitting the receiver to remain active to detect incoming signals.

Overall, the ADM202EARUZ from Analog Devices Inc. is a superior choice for designers seeking a high-speed, robust, and energy-efficient transceiver for their RS-232 communication needs.
