Introducing the ADL5544ARKZ-R7 from Analog Devices Inc.

The ADL5544ARKZ-R7 is a state-of-the-art RF/IF gain block amplifier that delivers exceptional performance and reliability for a wide range of applications. Manufactured by Analog Devices Inc., a leader in high-performance analog, mixed-signal, and digital signal processing integrated circuits, this product is designed to meet the rigorous demands of today's advanced wireless infrastructure and complex RF systems.

Key Features

• Frequency Range: The ADL5544ARKZ-R7 operates over a broad frequency range from 30 MHz to 4000 MHz, making it highly versatile for various RF applications.
• High Gain: With a fixed gain of 15.5 dB, this amplifier provides a significant boost to signal strength, ensuring clear and robust signal transmission.
• Low Noise Figure: The device boasts a low noise figure of just 2.7 dB at 900 MHz, which minimizes the addition of unwanted noise to the signal chain.
• Single Power Supply: It operates on a single 5 V supply, simplifying power supply design and reducing the overall component count.
• Excellent Linearity: The ADL5544ARKZ-R7 offers outstanding OIP3 performance of 36 dBm at 900 MHz, ensuring that signals are amplified without significant distortion.

Applications

The ADL5544ARKZ-R7 is ideally suited for a variety of applications, including:

• Wireless infrastructure (GSM, CDMA, LTE, etc.)
• RF/IF gain blocks
• General-purpose amplification for broadband applications
• Receiver and transmitter chains
• High-performance radios

Quality and Reliability

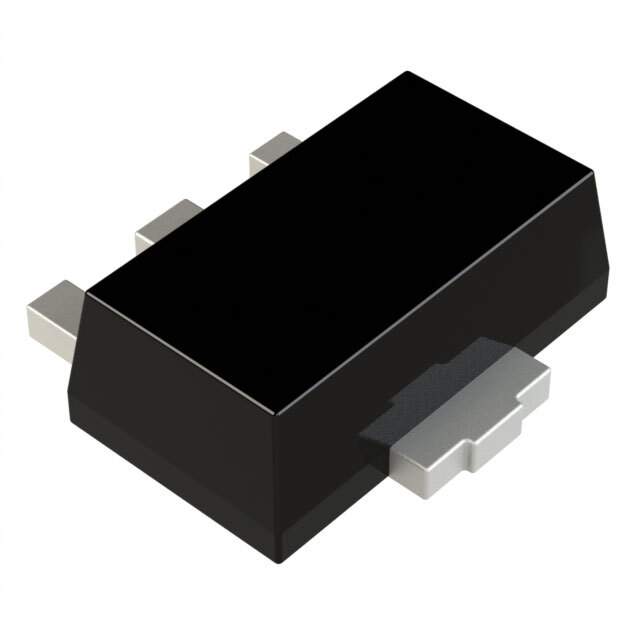

Analog Devices Inc. is committed to providing high-quality products, and the ADL5544ARKZ-R7 is no exception. It is available in a compact, 6-lead SOT-89 package that is RoHS compliant and is specified over the −40°C to +85°C temperature range, ensuring reliable operation in diverse environments.

Whether you're designing a sophisticated wireless communication system or looking for a reliable RF gain block, the ADL5544ARKZ-R7 offers the performance and quality that engineers and designers have come to expect from Analog Devices Inc.
