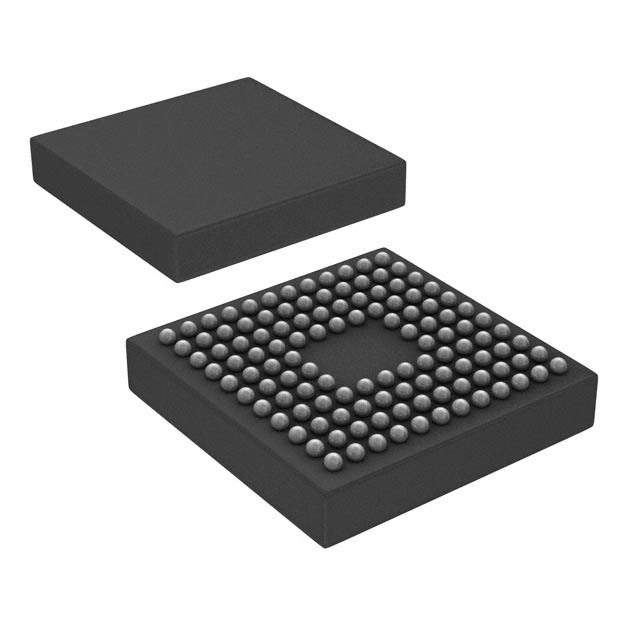

ADIS16240ABCZ

Part No ADIS16240ABCZ
Manufacturer Analog Devices Inc.
Catalog Accelerometers
Description ACCELEROMETER 19G SPI 112PBGA / Accelerometer X, Y, Z Axis ±19g 1.6kHz (X,Y), 550Hz (Z) 112-PBGA (12x12)
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Motion Sensors - Accelerometers
Mfr Analog Devices Inc.
Series iMEMS®, iSensor®
Package Tray
Product Status Obsolete
Type Digital
Axis X, Y, Z
Acceleration Range ±19g
Sensitivity (LSB/g) 51.4
Bandwidth 1.6kHz (X,Y), 550Hz (Z)
Output Type SPI
Voltage - Supply 2.4V ~ 3.6V
Features Selective Scale, Sleep Mode, Temperature Sensor
Temperature Range - Operating -40°C ~ 85°C (TA)
Mounting SMD (SMT)
Package / Case 112-BBGA
Supplier Device Package 112-PBGA (12x12)
Base Product Number ADIS16240
MSL Level 5 (48 Hours)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 1
Win Source Part Number 1229867-ADIS16240ABCZ
Ultra Librarian 3D Model Ultra Librarian ADIS16240ABCZ CAD Model

Description

ADIS16240ABCZ - High-Performance Digital Gyroscope Sensor

The ADIS16240ABCZ is a state-of-the-art digital gyroscope sensor designed and manufactured by Analog Devices Inc., a leader in high-performance semiconductors. This compact, precision angular rate sensor is engineered for demanding industrial and instrumentation applications. It offers a complete gyroscope system with a factory-calibrated, digital output signal that simplifies integration and minimizes system-level calibration efforts.

Key Features

  • High-Accuracy Sensing: The sensor provides accurate rotational rate measurements, making it ideal for applications requiring precise motion analysis.
  • Wide Measurement Range: It offers a broad measurement range, allowing for the capture of both slow and fast-moving rotational dynamics.
  • Stable Output: The built-in temperature compensation ensures stable performance over a wide temperature range, making it reliable in various operating conditions.
  • Digital Output: The sensor features a digital SPI-compatible interface, which facilitates easy integration with microcontrollers and digital systems.
  • Compact Form Factor: Housed in a small package, the ADIS16240ABCZ is suitable for space-constrained applications.
  • Shock Resistance: Its robust design provides resistance to shock and vibration, enhancing durability in harsh environments.

Applications

The versatility of the ADIS16240ABCZ makes it an excellent choice for a wide range of applications, including but not limited to:

  • Platform stabilization and control
  • Navigation and robotics
  • Automotive safety systems
  • Industrial equipment monitoring
  • Instrumentation and analysis tools

Technical Specifications

Parameter Value
Measurement Range ±300°/sec
Sensitivity Fixed
Output Type Digital (SPI)
Supply Voltage 3.3V
Operating Temperature -40°C to +85°C
Package / Case 16-CBGA

With its robust performance and high reliability, the ADIS16240ABCZ from Analog Devices Inc. is an exceptional choice for engineers and designers looking to enhance the precision and efficiency of their systems.
