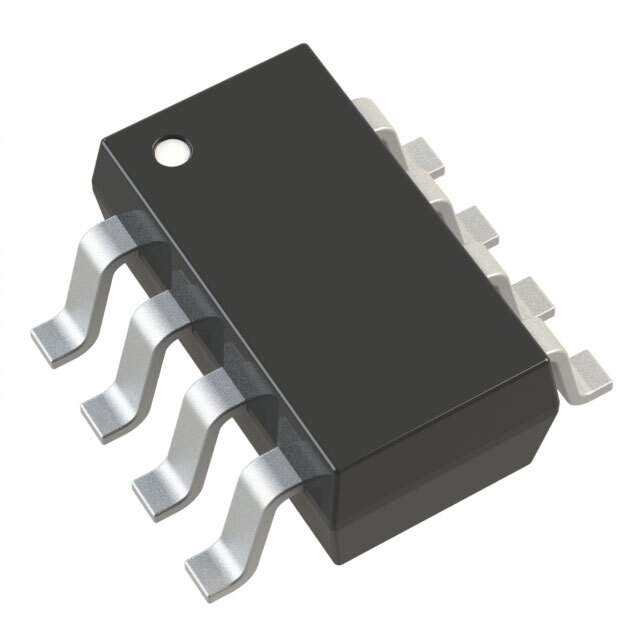

The ADG619BRTZ-REEL7 is a high-performance, CMOS analog switch manufactured by Analog Devices Inc., a leader in precision high-performance integrated circuits. This product is part of the ADG619 series, which are monolithic, CMOS SPDT (single pole double throw) switches. This particular model is provided in a compact SOT-23 package and is designed for use in a wide range of applications, including communication systems, data acquisition systems, and audio signal routing.

Key Features

• Low On Resistance: The switch features a low on resistance of typically 4 Ω, which ensures minimal signal distortion and power loss.
• Single Supply Operation: It operates from a single supply voltage ranging from +2.7 V to +5.5 V, making it suitable for battery-powered devices and portable applications.
• Fast Switching Times: The ADG619BRTZ-REEL7 boasts fast switching times (tON and tOFF) of typically 20 ns and 10 ns, respectively, which is ideal for high-speed signal switching.
• Low Power Consumption: With ultra-low power dissipation, the device is perfect for power-sensitive applications.
• High Off Isolation: The switch provides excellent signal isolation when in the off state, minimizing crosstalk between channels.
• Extended Temperature Range: It is operational over the extended industrial temperature range of -40°C to +125°C, ensuring reliability in harsh environments.

Applications

• Audio and Video Signal Routing
• Communication Systems
• Data Acquisition Systems
• Test Equipment
• Relay Replacement
• Battery-Powered Systems

Product Details

The ADG619BRTZ-REEL7 comes in a tape and reel packaging format, denoted by the REEL7 suffix, which is suitable for automated assembly processes. The device's SOT-23 package is highly favored for its small footprint, making it an excellent choice for space-constrained applications. Analog Devices Inc. ensures that the ADG619BRTZ-REEL7 meets rigorous quality and performance standards, offering designers a reliable and efficient solution for their analog switching needs.

Ordering Information

For purchasing and further information regarding the ADG619BRTZ-REEL7, please contact Analog Devices Inc. or an authorized distributor. Ensure to refer to the latest datasheets and product specifications to verify the suitability of the product for your specific application.
