Introducing the ADG5206BRUZ High-Performance Analog Multiplexer

The ADG5206BRUZ is a state-of-the-art high-voltage, high-performance analog multiplexer from Analog Devices Inc., a renowned leader in the semiconductor industry. This robust component is designed to operate with dual power supplies ranging from ±9 V to ±22 V or a single power supply between 9 V and 40 V, offering exceptional flexibility for a wide range of applications.

Featuring 16 single channels, the ADG5206BRUZ provides a 1:16 channel configuration, which allows for the efficient routing of analog signals to a common output. This makes it an ideal choice for data acquisition systems, test equipment, and battery-powered instruments where high channel density and low power consumption are critical.

One of the standout features of the ADG5206BRUZ is its latch-up proof performance. The device is constructed with Analog Devices Inc.'s proprietary iCMOS® (industrial CMOS) process, which ensures robust latch-up immunity. This is especially important in safety-critical applications, where unexpected latch-up can lead to system failures.

The ADG5206BRUZ also boasts a low charge injection of

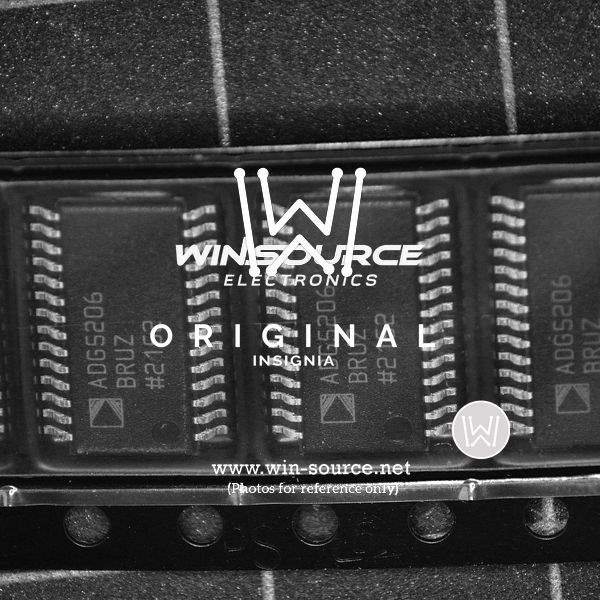

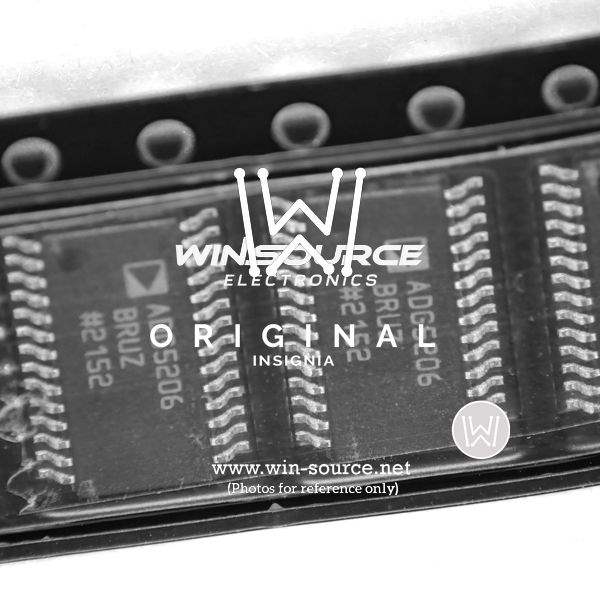

For added convenience, the ADG5206BRUZ comes in a compact TSSOP (Thin Shrink Small Outline Package) with 28 pins, making it easy to integrate into space-constrained designs. The multiplexer also features a 44 V maximum voltage rating for the analog switches, providing a generous margin for overvoltage conditions, thus enhancing the reliability and longevity of the end application.

Overall, the ADG5206BRUZ is a versatile and reliable choice for engineers looking to incorporate a high-performance analog multiplexer into their designs. With its robust feature set and proven technology from Analog Devices Inc., this component is set to deliver outstanding performance and reliability.
