The ADD5207ACPZ is a high-performance, integrated LED driver from the esteemed Analog Devices Inc. This driver is specifically designed to efficiently manage and drive LED arrays, making it an ideal choice for a wide range of lighting applications. With its precision and reliability, the ADD5207ACPZ is well-suited for backlighting LCD panels, as well as for general illumination and automotive lighting systems.

Key Features

• Integrated Solution: The ADD5207ACPZ consolidates multiple functionalities into a single chip, which includes a boost converter, a 7-channel current sink, and a built-in PWM generator, simplifying the design and reducing the overall component count.
• High Efficiency: The device features a high-efficiency boost converter that can drive up to 60 LEDs in series, ensuring optimal power usage and helping to extend battery life in portable applications.
• Dimming Capabilities: With its internal PWM generator and external dimming control, the ADD5207ACPZ provides smooth and flicker-free dimming, allowing for a wide range of brightness levels.
• Thermal Protection: The thermal management system of the ADD5207ACPZ includes over-temperature protection, safeguarding the device and the LEDs from potential thermal damage.
• Flexibility: The device is designed to accommodate a variety of LED configurations and can adapt to different input voltages, making it versatile for numerous applications.

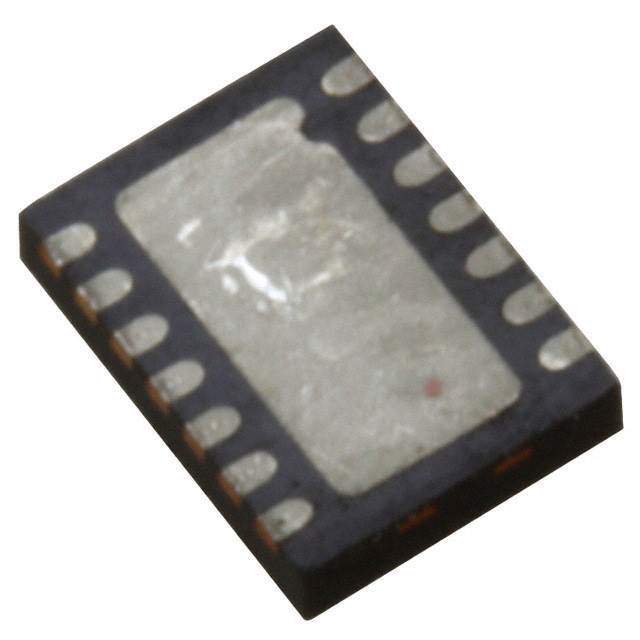

• Compact Packaging: Housed in a compact LFCSP (Lead Frame Chip Scale Package), the ADD5207ACPZ saves valuable board space and is suitable for space-constrained applications.

Applications

The ADD5207ACPZ is a versatile LED driver that can be used in a multitude of applications. Its primary use is in backlighting for LCD TVs, monitors, and laptop screens, where consistent and controlled illumination is necessary. Additionally, its robust design makes it suitable for automotive interior and exterior lighting, as well as in general lighting solutions that require energy-efficient and reliable LED driving capabilities.

Technical Specifications

The device operates over a wide input voltage range and provides several safety features including over-voltage, over-current, and thermal shutdown. The ADD5207ACPZ also supports synchronization to an external clock, allowing for seamless integration into more complex lighting systems.
