Analog Devices ADCMP572BCPZ-WP: High-Speed Comparator

The ADCMP572BCPZ-WP is a high-performance, high-speed comparator from Analog Devices Inc., designed to offer fast signal processing with low power consumption. This precision device is suitable for a wide range of applications, including time-of-flight systems, high-speed data acquisition, zero-crossing detectors, and pulse-width modulation (PWM) signal generation.

Featuring a typical propagation delay of just 180 ps with overdrive and recovery times as low as 500 ps, the ADCMP572BCPZ-WP is one of the fastest comparators available on the market. It operates with a dual supply voltage ranging from ±2.25 V to ±5.5 V, or a single supply voltage from 4.5 V to 11 V, providing flexibility for different circuit configurations.

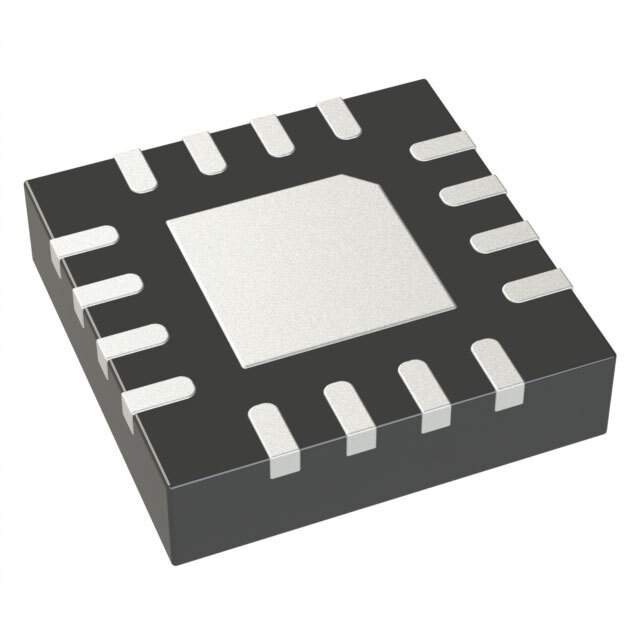

The ADCMP572BCPZ-WP comes in a compact 3 mm x 3 mm LFCSP (Lead Frame Chip Scale Package) that is both space-saving and conducive to efficient thermal management. The device is also characterized for operation over the wide temperature range of -40°C to +125°C, ensuring reliable performance in harsh environmental conditions.

Key features of the ADCMP572BCPZ-WP include:

• Fast propagation delay: 180 ps typical
• Low dispersion: 10 ps (typical) with 100 mV overdrive
• PECL (Positive Emitter-Coupled Logic) and LVPECL (Low Voltage PECL) compatible
• Input hysteresis: 3.5 mV typical for improved noise immunity
• Single or dual power supply operation
• Latch function with a voltage-controlled input
• Power-down feature for reduced power consumption

The ADCMP572BCPZ-WP is a robust choice for designers who require a comparator that can handle high-speed signals without compromising accuracy or power efficiency. Whether used in automated test equipment, high-speed instrumentation, or communication systems, this comparator from Analog Devices Inc. is engineered to deliver exceptional performance where it matters most.

With its advanced design, the ADCMP572BCPZ-WP ensures that systems can process high-speed signals with precision, making it an indispensable component for any application demanding the highest levels of speed and reliability.
