The AD9785BSVZ is a high-performance digital-to-analog converter (DAC) offered by Analog Devices Inc., a leading global manufacturer of precision high-performance integrated circuits used in analog and digital signal processing applications.

Key Features

• Digital-to-Analog Conversion: The device features a 14-bit resolution which ensures high fidelity in the conversion process, providing accurate and precise analog output signals.
• High-Speed Operation: With a maximum sampling rate of up to 800 MSPS (Mega Samples Per Second), the AD9785BSVZ is capable of handling high-speed signal processing tasks with ease.
• Integrated Interpolation Filters: The DAC includes 2x, 4x, and 8x interpolation filters, which help in reducing the data rate required on the input side and smoothing the output signal.
• Complex Modulator: It incorporates a complex digital modulator with fine NCO (Numerically Controlled Oscillator) that allows for flexible carrier frequency placement, making it suitable for a variety of communication applications.
• Versatile Interface: The product supports a dual-port LVDS (Low-Voltage Differential Signaling) interface that ensures high-speed data transfer while minimizing the noise.

Applications

The AD9785BSVZ is designed for use in a wide array of applications that require high-speed and high-resolution digital-to-analog conversion. These include:

• Wireless Infrastructure (e.g., base stations for 3G and 4G cellular networks)
• Cable Modem Termination Systems
• Broadband Data Communications
• Instrumentation and Automated Test Equipment (ATE)
• Direct Digital Synthesis (DDS) Systems

Technical Specifications

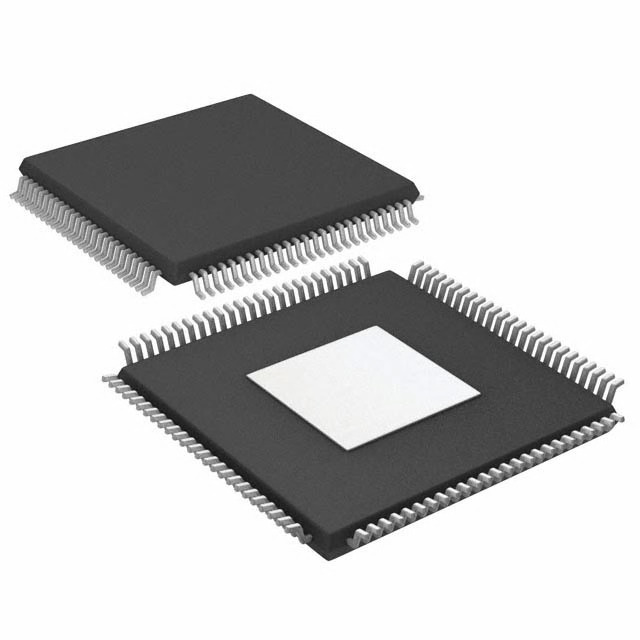

The device comes in a compact 100-lead TQFP (Thin Quad Flat Package) with an exposed paddle, denoted by the 'SVZ' suffix in the product name, which aids in thermal management. The AD9785BSVZ operates over the industrial temperature range and requires a single 1.8V supply voltage for the digital interface, with an additional 3.3V supply for the analog circuitry.

For detailed technical specifications, application notes, and support resources, customers are encouraged to visit the official Analog Devices Inc. website or contact their support team.
