AD8606ACBZ-REEL7

Part No AD8606ACBZ-REEL7
Manufacturer Analog Devices Inc.
Catalog Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps
Description IC OPAMP GP 10MHZ RRO 8WLCSP
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits
Manufacturer Analog Devices Inc.
Packaging Reel - TR
Status Active
Amplifier Type General Purpose
Number of Circuits 2
Output Type Rail-to-Rail
Slew Rate 5 V/μs
Gain Bandwidth Product (GBP) 10MHz
Current - Input Bias 0.2pA
Voltage - Input Offset 80μV
Operating Supply Current 1mA
Channel Output Current 80mA
Supply Voltage - Operating 2.7 V to 5.5 V
Temperature Range - Operating -40°C to 125°C
Mounting SMD (SMT)

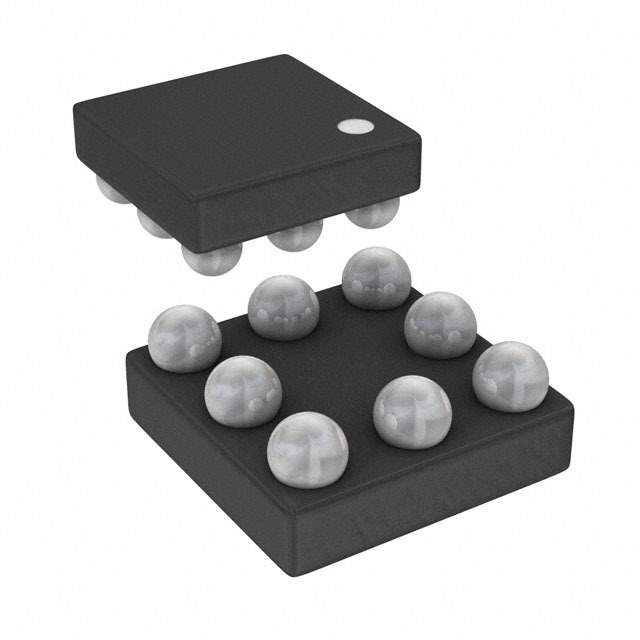

Case / Package 8-WLCSP
Win Source Part Number 144654-AD8606ACBZ-REEL7
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian AD8606ACBZ-REEL7 CAD Model

Description

AD8606ACBZ-REEL7 from Analog Devices Inc. is part of the Linear - Amplifiers - Instrumentation, OP Amps, Buffer Amps category and is typically evaluated by engineers building precision analog signal chains, sensor interfaces, data acquisition stages, and portable instrumentation. Devices in this family are commonly selected where stable amplification, buffering, or low-error signal conditioning is important for downstream conversion or control circuitry. The reel packaging format also makes this part relevant for volume assembly and automated production workflows. For design teams, its value lies in enabling compact analog front-end implementation within industrial, medical, consumer, and test equipment platforms, depending on system-level requirements. The current lifecycle status for AD8606ACBZ-REEL7 is information not available, so procurement and sustaining engineers should verify the latest manufacturer status before approving it for new or long-life designs. RoHS compliance information is also not available in the provided data and should be confirmed through the official datasheet, manufacturer declarations, or authorized distribution sources.
