AD8544ARZ General-Purpose CMOS Rail-to-Rail Amplifiers

The AD8544ARZ is a high-performance, quad operational amplifier from Analog Devices Inc., designed to offer a combination of precision, low power consumption, and a rail-to-rail output swing. This product is part of the AD854x series, which are single-supply amplifiers that feature a wide input voltage range and can operate from a single 2.7 V to 5.5 V supply, making them ideal for battery-powered applications and portable devices.

Key Features

• Rail-to-Rail Output: The AD8544ARZ provides a rail-to-rail output swing, which maximizes the dynamic range in low supply voltage applications.
• Low Power Consumption: With a typical quiescent current of just 45 µA per amplifier, this device is optimized for low power applications without compromising performance.
• Wide Bandwidth: It offers a gain bandwidth product of 1 MHz, which is excellent for low frequency applications requiring a wide bandwidth.
• Low Input Bias Current: The input bias current is typically 1 pA, making the device suitable for applications requiring high input impedance.
• Single-Supply Operation: Designed to operate from a single supply voltage in the range of 2.7 V to 5.5 V, it simplifies power supply design.

Applications

The AD8544ARZ is versatile and can be used in a variety of applications, including:

• Portable and battery-powered instruments
• Sensor interfaces
• Audio electronics
• Active filters
• General-purpose analog signal processing

Package and Reliability

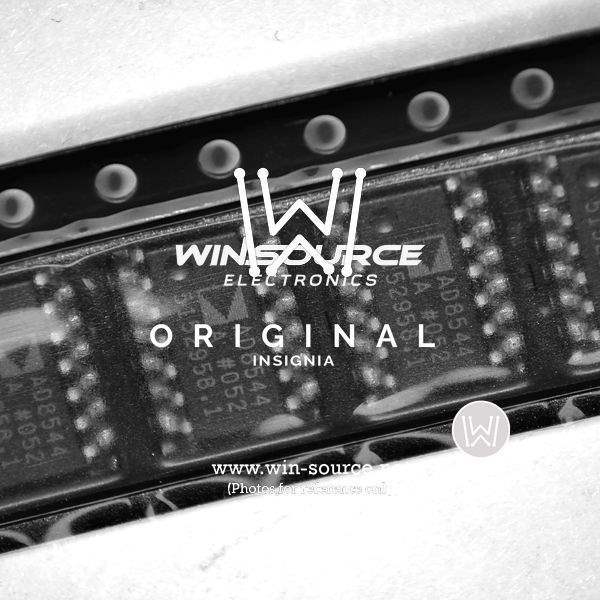

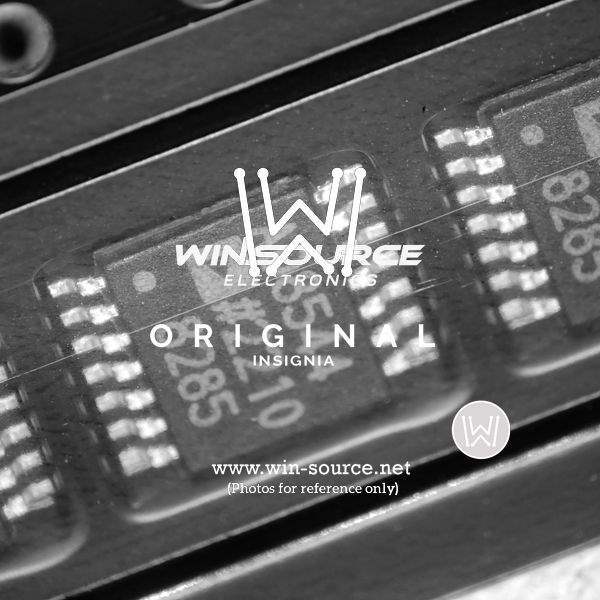

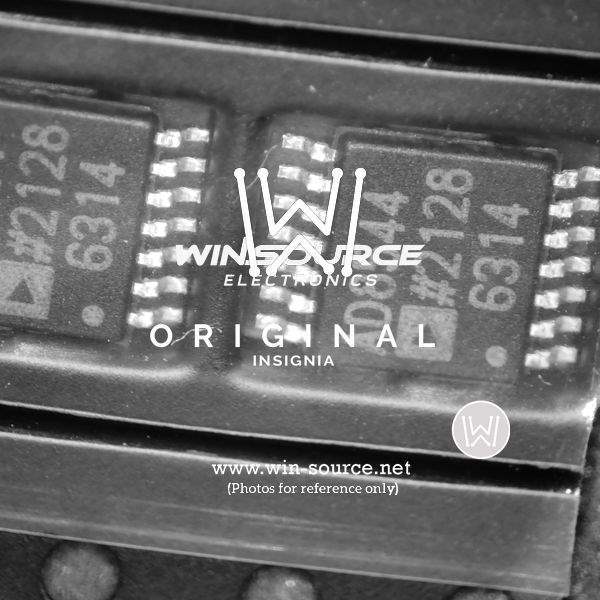

The AD8544ARZ comes in a 14-lead SOIC (Small Outline Integrated Circuit) package, which is suitable for surface mount technology (SMT) and fits well in compact circuit designs. Analog Devices Inc. ensures high reliability and performance consistency, which makes the AD8544ARZ a reliable choice for both industrial and consumer applications.

Whether you're designing a sophisticated audio system, a sensitive sensor interface, or any application that requires a high-precision operational amplifier, the AD8544ARZ offers the features and quality expected from a leading semiconductor manufacturer like Analog Devices Inc.
