Product Overview: AD8235ACBZ-P7

The AD8235ACBZ-P7 is a high-performance, low power, zero-drift operational amplifier from Analog Devices Inc., designed for precision signal processing and instrumentation. This component is ideal for applications requiring high accuracy and stability over time and temperature. With its advanced design, the AD8235ACBZ-P7 provides solutions for medical devices, portable and battery-powered equipment, and sensor signal conditioning.

Key Features:

• Zero-Drift Architecture: The AD8235ACBZ-P7 features a self-correcting architecture that minimizes offset drift over time and temperature, ensuring high precision in measurement applications.
• Low Power Consumption: With a supply current of just 40 µA, this op-amp is optimized for battery-powered devices, helping to extend the operational life of portable applications.
• Rail-to-Rail Output: The device can swing its output voltage close to the supply rails, maximizing the dynamic range in single-supply operations.
• Wide Supply Voltage Range: The operational amplifier operates over a wide supply voltage range from 1.8 V to 5.5 V, providing design flexibility for various applications.
• Low Input Bias Current: The low input bias current of the AD8235ACBZ-P7 is particularly advantageous for high-impedance sensor interfaces and precision integrators.

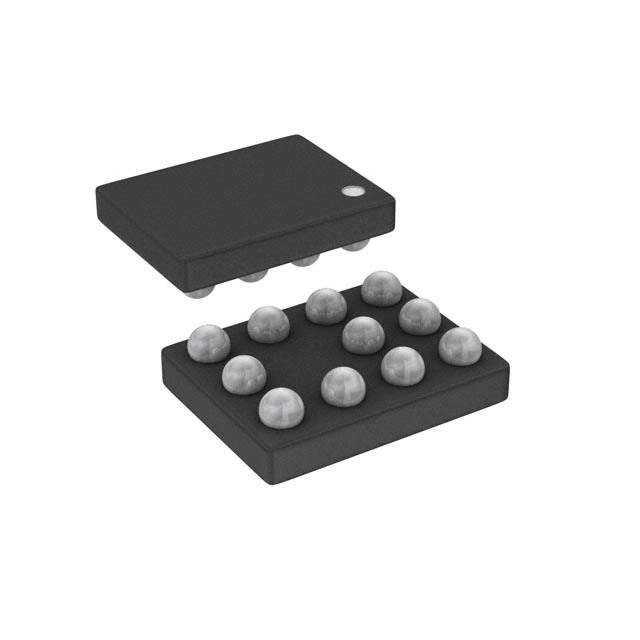

• Compact Packaging: Housed in a tiny, lead frame chip scale package (LFCSP), the AD8235ACBZ-P7 is suitable for space-constrained designs without compromising on performance.

Applications:

• Medical instrumentation such as ECG and non-invasive blood pressure monitors
• Battery-powered devices and portable equipment
• Temperature measurement and control systems
• Strain gauge amplifiers
• Precision current sensing
• General-purpose low-power signal conditioning

The AD8235ACBZ-P7 by Analog Devices Inc. is a testament to the company's commitment to providing high-quality, reliable components for the most demanding precision applications. Its combination of zero-drift performance, low power consumption, and compact size makes it a versatile choice for designers looking to enhance the accuracy and efficiency of their electronic systems.
