The AD8124ACPZ-R7 is a high-performance, triple differential receiver from Analog Devices Inc., designed to equalize and recover signals from twisted pair or coaxial cables. This integrated circuit is part of the company's extensive range of data converters, amplifiers, and linear products, offering a robust solution for high-speed data transmission and communication applications.

Key Features

• Adjustable Equalization: The device includes adjustable equalization to compensate for the frequency-dependent attenuation of long cables, ensuring signal integrity over extended distances.
• High Data Rates: Capable of supporting high data rates, the AD8124ACPZ-R7 is ideal for applications requiring fast and reliable data transmission.
• Integrated Receivers: With three integrated differential receivers, the product can handle multiple data channels simultaneously, making it a versatile component for complex systems.
• Low Distortion: The AD8124ACPZ-R7 offers low distortion and noise, providing a clean signal for further processing and reducing the likelihood of errors.

Applications

• KVM (Keyboard, Video, Mouse) Extenders
• Professional Video Surveillance Systems
• Video Broadcasting and Distribution
• High-Resolution Video Signage
• Automotive Infotainment and Driver Assistance Systems

Product Specifications

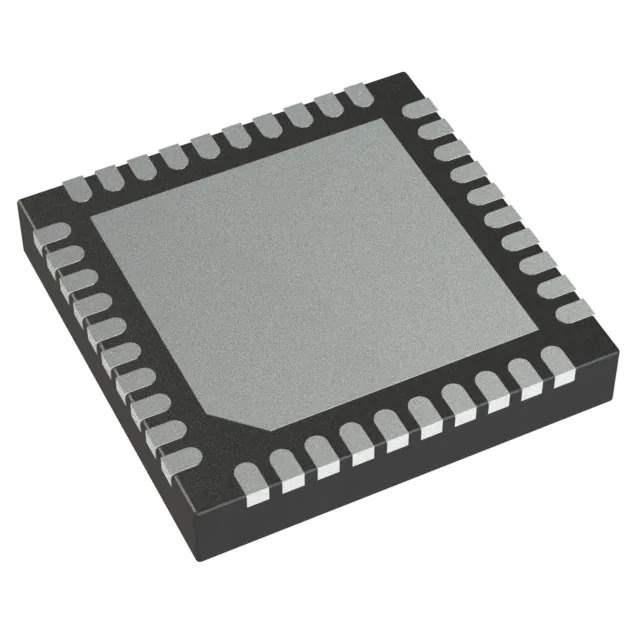

The AD8124ACPZ-R7 comes in a compact LFCSP (Lead Frame Chip Scale Package) that is designed for space-constrained applications. It operates over a wide temperature range, making it suitable for industrial environments. The device's part number suffix, 'R7', indicates that it is available in a 7-inch reel, which is convenient for automated manufacturing processes.

Quality and Reliability

Analog Devices Inc. is known for its commitment to quality and reliability, and the AD8124ACPZ-R7 is no exception. It is manufactured to meet the highest industry standards, ensuring performance and durability in demanding conditions.
