Product Overview: AD8099ACPZ-REEL7

The AD8099ACPZ-REEL7 from Analog Devices Inc. is a high-performance, low-distortion operational amplifier that is well-suited for a wide range of applications, including professional audio equipment, active filters, and fast signal conditioning circuits in data acquisition systems. Designed with Analog Devices' proprietary XFCB (eXtra Fast Complementary Bipolar) process, this op-amp offers an exceptional balance of speed and precision.

The device features a high slew rate and low noise, ensuring signal fidelity and rapid response times in demanding scenarios. With a wide bandwidth and a low total harmonic distortion (THD), the AD8099ACPZ-REEL7 is an ideal choice for applications requiring high dynamic range and linearity.

Key Features:

• High Speed: The AD8099ACPZ-REEL7 boasts a slew rate of 1000 V/µs, allowing for quick and efficient signal processing.
• Low Distortion: With a THD of -92 dBc at 1 MHz, it ensures clean and accurate amplification of audio signals and other high-frequency inputs.
• Wide Bandwidth: It offers a -3 dB bandwidth of 600 MHz, making it suitable for high-speed applications.
• Low Noise: The operational amplifier has a low voltage noise density of 2.6 nV/√Hz, contributing to the precision of the signal processing.
• Supply Voltage Range: It operates over a supply voltage range of ±2.5 V to ±5.5 V, offering flexibility in various circuit designs.
• Output Current: The device can deliver an output current of 65 mA, suitable for driving a variety of loads.

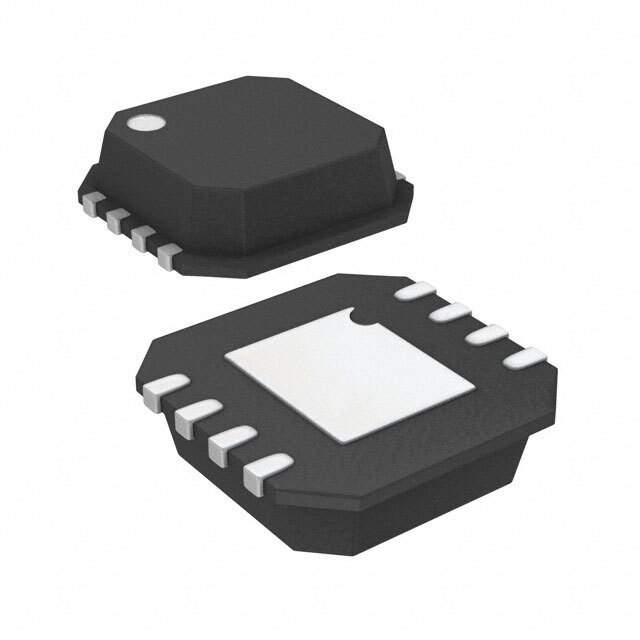

• Package: It comes in a compact LFCSP (Lead Frame Chip Scale Package) that is RoHS compliant and suitable for space-constrained applications.

Applications:

• Professional audio equipment
• Active filters and signal conditioning
• ADC/DAC buffers
• Video and high-speed data acquisition systems
• Test and measurement equipment

The AD8099ACPZ-REEL7 is available in a convenient reel packaging, facilitating automated assembly processes and volume production. With its combination of high-speed performance, low distortion, and flexibility, it stands out as a robust solution for engineers looking to optimize their high-performance systems.
