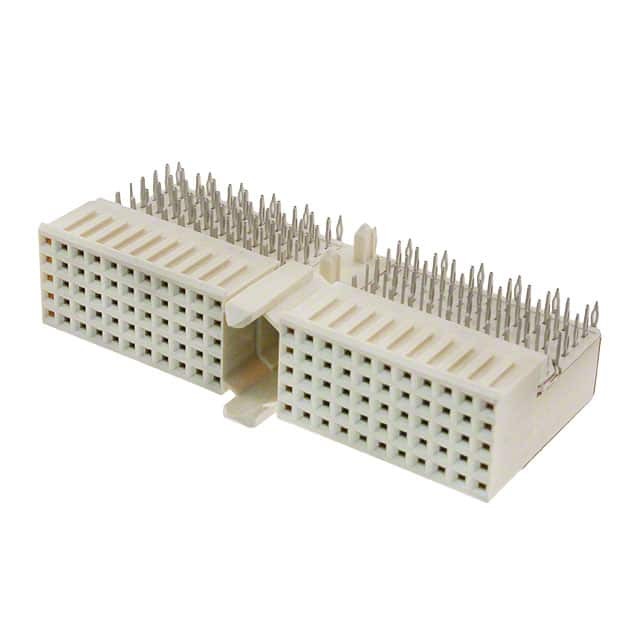

Same model may have multiple batches, images only for reference.
HM2R01PA5108N9LF
Same model may have multiple batches, images only for reference.

HM2R01PA5108N9LF

Part No HM2R01PA5108N9LF
Manufacturer Amphenol
Catalog Backplane Connectors
Description CONN RECEPT 110POS 2MM PRESS-FIT
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Backplane Connectors - Hard Metric, Standard
Mfr Amphenol
Series Millipacs®
Package Tray
Product Status Active
Connector Type Receptacle, Female Sockets
Connector Style A 22
Number of Positions 110
Number of Positions Loaded All
Pitch 0.079" (2.00mm)
Number of Rows 5
Mounting Type Board Edge, Through Hole, Right Angle
Termination Press-Fit
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Current Rating (Amps) 1.5 A
Voltage Rating 750Vrms
Temperature Range - Operating -55°C ~ 125°C
Features Board Guide, Upper Shield
Base Product Number HM2R01
Standard Package 36 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 845583-HM2R01PA5108N9LF
Ultra Librarian 3D Model Ultra Librarian HM2R01PA5108N9LF CAD Model

Description

The Millipacs™ Backplane Connector is a high-performance connector designed for demanding applications. With a pitch of 0.079" (2.00mm) and 110 positions, this connector provides a high-density and reliable connection.

  • Pitch: 0.079" (2.00mm)
  • Positions: 110
  • Termination: press-fit
  • Contact Finish: gold
  • Mounting: board edge and through-hole
  • Temperature Range: -55°C to 125°C
  • Manufacturer: Amphenol
  • Packaging: tray
  • Pieces per Package: 36
