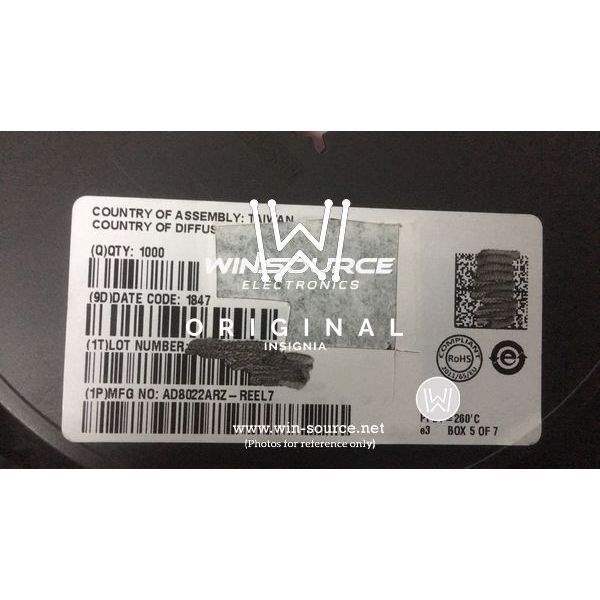

The AD8022ARZ-REEL7 from Analog Devices Inc. is a high-performance, dual operational amplifier that combines low-noise and high-speed specifications, making it an ideal choice for a wide range of applications. This operational amplifier comes in a compact SOP-8 package and is part of a tape and reel packaging, indicated by the -REEL7 suffix, suitable for automated assembly processes.

Key Features

• High-Speed Performance: With a bandwidth of 300 MHz and a slew rate of 1700 V/µs, the AD8022 enables fast signal processing, which is essential for video, data acquisition, and high-frequency applications.
• Low Noise: The device boasts a low voltage noise density of 2.7 nV/√Hz, ensuring high-fidelity signal amplification with minimal added noise, making it ideal for audio and instrumentation applications.
• Low Distortion: With a Total Harmonic Distortion (THD) of -92 dBc at 1 MHz, the AD8022 maintains signal integrity and quality, a critical feature for precision analog circuits.
• Dual Amplifier Configuration: The dual amplifier design allows for compact circuit layouts and can be used in differential signal processing or dual independent channels.
• Wide Supply Range: The operational amplifier can be powered by a wide supply range of 5 V to 24 V, offering flexibility in various supply environments.
• Stable Over Capacitive Loads: The AD8022 is designed to be stable when driving capacitive loads, which is beneficial when used in buffer or filter circuits.

Applications

The AD8022ARZ-REEL7 is well-suited for applications that require high-speed and low-noise performance, such as:

• Professional Audio Equipment
• Active Filters and Buffers
• Data Acquisition Systems
• Video Amplifiers
• Test and Measurement Instruments
• Medical Imaging Devices

Overall, the AD8022ARZ-REEL7 operational amplifier from Analog Devices Inc. represents a blend of speed, precision, and low noise, making it a versatile component for designers seeking to enhance the performance of their high-speed analog circuits.
