Analog Devices AD7864BSZ-1: High-Speed, 4-Channel ADC

The AD7864BSZ-1 is a high-performance, 12-bit analog-to-digital converter (ADC) from the reputable manufacturer Analog Devices Inc. Designed to cater to a wide range of applications that require multi-channel data acquisition, this ADC stands out for its speed, accuracy, and ease of integration into various systems.

Key Features

• Four Simultaneous Sampling Channels: The AD7864BSZ-1 boasts four independently operating ADCs that allow for simultaneous sampling of four analog signals, making it ideal for phased-array processing, motor control, and multi-sensor systems.
• High-Speed Performance: With a conversion rate of up to 166 kSPS (kilo-samples per second), this ADC is well-suited for applications requiring rapid and precise data acquisition.
• 12-Bit Resolution: The device provides a 12-bit resolution, offering a fine level of detail in the digital representation of the analog input signals.
• Single 5V Supply: The AD7864BSZ-1 operates on a single 5V power supply, simplifying power management in embedded systems.
• Low Power Consumption: It is designed for low power operation, which is critical for portable and battery-powered applications.
• Flexible Input Range: The ADC features a ±10 V input range, giving designers the flexibility to work with a variety of signal amplitudes.
• Serial Interface: The device includes a high-speed serial interface, which facilitates easy communication with microprocessors and digital signal processors.

Applications

The AD7864BSZ-1 is versatile and can be used in a multitude of applications such as:

• Industrial control systems
• Medical instruments
• Data acquisition systems
• Instrumentation and measurement equipment
• Imaging systems

Package and Quality

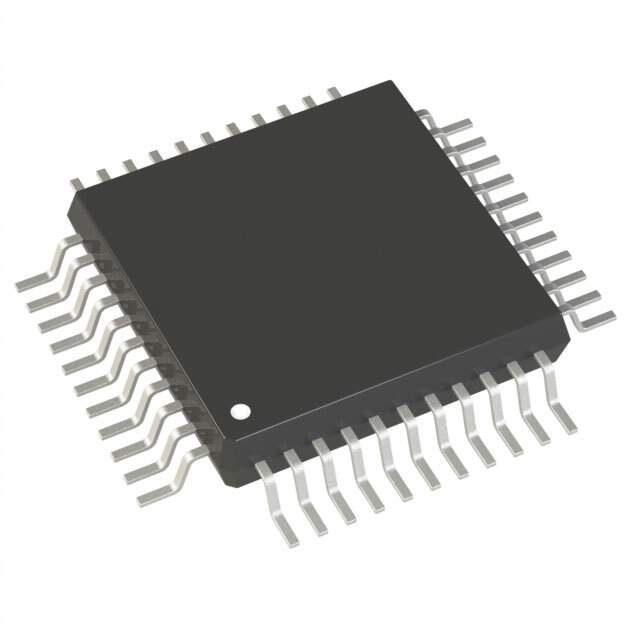

The ADC comes in a 44-lead MQFP (Metric Quad Flat Pack) package, ensuring a compact footprint suitable for space-constrained applications. As with all Analog Devices products, the AD7864BSZ-1 is manufactured to high-quality standards, ensuring reliability and performance consistency for critical applications.

With its combination of speed, precision, and multi-channel functionality, the AD7864BSZ-1 from Analog Devices Inc. is an excellent choice for system designers looking to enhance their data acquisition capabilities.
