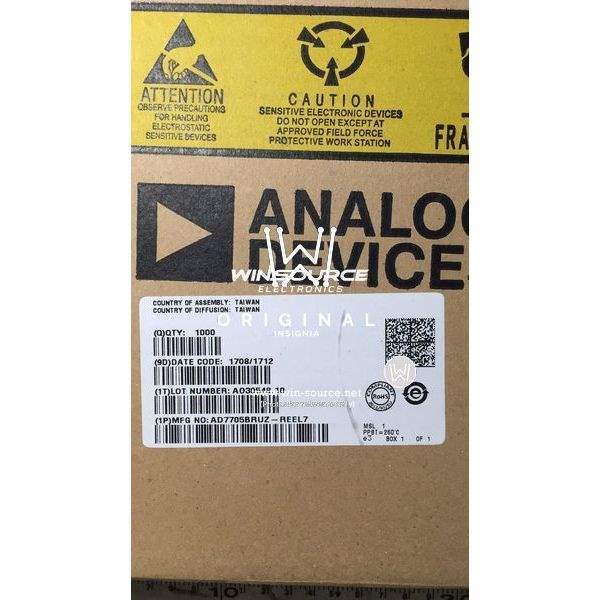

AD7705BRU by Analog Devices Inc.

The AD7705BRU is a high-precision, low-power, 16-bit sigma-delta (Σ-Δ) Analog-to-Digital Converter (ADC) produced by Analog Devices Inc. This device is specifically designed to convert analog signals to digital form with high accuracy and resolution. It is an ideal choice for a wide range of applications, such as industrial control systems, medical instrumentation, and battery-powered devices, where power efficiency and precision are crucial.

Encased in a TSSOP-16 package, the AD7705BRU offers dual channels, allowing it to handle multiple signal inputs. This feature is particularly beneficial for systems that require simultaneous measurement of different sensors. The ADC operates on a single 3 V or 5 V power supply, making it versatile for integration into various circuit designs. Its low power consumption is especially advantageous for portable and remote sensing applications.

The AD7705BRU boasts a programmable gain amplifier (PGA), which can be configured to adjust the input range for each channel, thus ensuring optimal performance for different input signal amplitudes. This flexibility allows users to tailor the ADC to their specific needs without external signal conditioning circuits, simplifying the overall design and reducing system cost.

With its on-chip calibration and buffering, the AD7705BRU simplifies the design process by minimizing the need for external components. The device also features a digital filter that reduces noise and improves signal quality, ensuring reliable and accurate readings. Its SPI-compatible serial interface facilitates easy communication with microcontrollers and digital systems, enabling seamless integration into existing designs.

Key features of the AD7705BRU include:

• 16-bit resolution with no missing codes
• Programmable data output rates for flexibility in various applications
• Self-calibration on power-up and system calibration capability
• Low noise performance for high signal integrity
• Wide operating temperature range, suitable for industrial environments

In conclusion, the AD7705BRU from Analog Devices Inc. represents a robust, high-precision ADC solution that offers designers the performance and flexibility needed to meet the demands of a diverse range of precision measurement applications.
