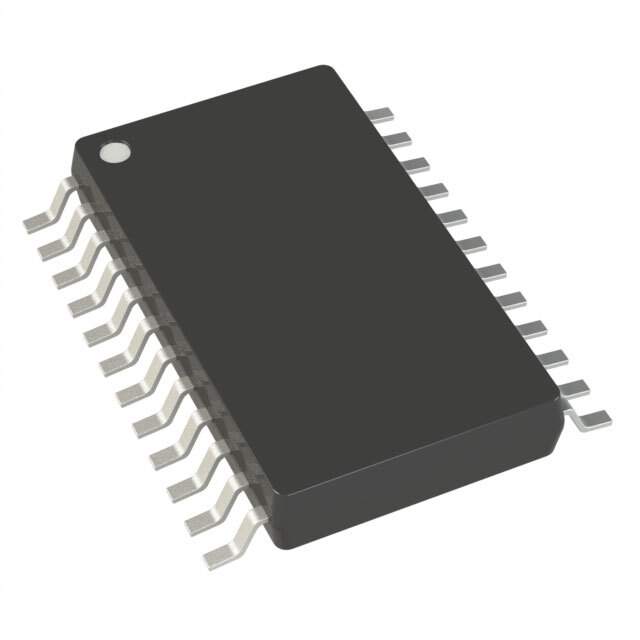

The AD5754BREZ-REEL7, manufactured by Analog Devices Inc., is a high-performance, quad-channel digital-to-analog converter (DAC) designed for precision electronic applications. This robust component is part of the AD5754 series and comes in a compact 24-lead TSSOP (Thin Shrink Small Outline Package) form factor, making it suitable for space-constrained applications.

Key Features

• Quad Channel: The device includes four independent DAC channels, allowing for multiple signal outputs from a single device, which is ideal for complex systems that require multiple analog signals.
• Resolution: Each channel offers 16-bit resolution, providing high precision and fine granularity in analog signal generation.
• Output Range: The DAC features a selectable output range, including bipolar and unipolar options, which can be programmed via a serial interface, making it versatile for different application needs.
• Interface: It incorporates a serial peripheral interface (SPI) compatible with standard SPI, QSPI™, MICROWIRE™, and DSP interface standards, ensuring easy integration with a wide range of microcontrollers and digital systems.
• Power Supply: The AD5754BREZ-REEL7 operates from a dual supply of up to ±16.5 V or a single supply of up to 33 V, providing flexibility in power management for various systems.
• Temperature Range: Designed for reliability, it functions effectively within an industrial temperature range of -40°C to +105°C.
• Packaging: Supplied in a REEL7 packaging format, it is suitable for automated assembly processes, facilitating efficient production and inventory management.

Applications

The AD5754BREZ-REEL7 is ideal for a wide range of applications including industrial control systems, automated test equipment, digital gain and offset adjustment, programmable voltage and current sources, and motion control systems. Its high resolution and multiple output ranges also make it suitable for medical instrumentation, where precision and reliability are paramount.

Conclusion

In summary, the AD5754BREZ-REEL7 from Analog Devices Inc. is a versatile and high-precision quad-channel DAC that meets the needs of advanced electronic systems. Its combination of features ensures that it can be integrated into a variety of applications where accuracy and control are essential.
