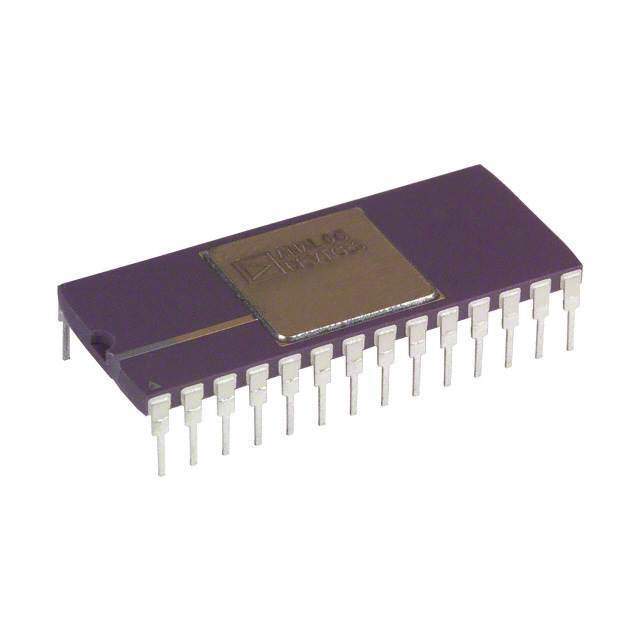

The AD567JD from Analog Devices Inc. is a 12-bit digital-to-analog converter (DAC) that features a wide output voltage range, low power consumption, and high accuracy. It is ideal for a wide range of applications, including industrial automation, process control, and test and measurement.

The AD567JD has a wide output voltage range of -10V to +10V, which makes it suitable for a variety of applications. It also has a low power consumption of only 1.2mA, which makes it ideal for battery-powered devices. The AD567JD is also very accurate, with a typical differential nonlinearity (DNL) of less than 1LSB and a total unadjusted error (TUE) of less than ±1LSB.

The AD567JD is available in a variety of packages, including a 28-pin CDIP, a 28-pin SOIC, and a 28-pin TSSOP. It is also available in a variety of temperature grades, including commercial, industrial, and extended.

Features

• Wide output voltage range: -10V to +10V
• Low power consumption: 1.2mA
• High accuracy:
  • Typical DNL: <1LSB
  • Typical TUE: ±1LSB
• Available in a variety of packages and temperature grades

Applications

• Industrial automation
• Process control
• Test and measurement
• Battery-powered devices
• Instrumentation
• Data acquisition
• Medical devices
• Aerospace and defense

Benefits

• The wide output voltage range of the AD567JD makes it suitable for a variety of applications.
• The low power consumption of the AD567JD makes it ideal for battery-powered devices.
• The high accuracy of the AD567JD makes it suitable for demanding applications.
• The variety of packages and temperature grades available for the AD567JD makes it easy to find the right part for your application.

Example Applications

• Programmable power supplies
• Programmable gain amplifiers
• Digital potentiometers
• Voltage references
• Sensor interfaces
• Motor controllers
• Audio processors
• Industrial control systems
• Medical devices
• Aerospace and defense systems

Conclusion

The AD567JD is a versatile and high-performance 12-bit DAC that is suitable for a wide range of applications. It offers a wide output voltage range, low power consumption, high accuracy, and a variety of package and temperature grade options.
