Product Overview: AD5675BCPZ-REEL7

The AD5675BCPZ-REEL7 is a precision digital-to-analog converter (DAC) product from Analog Devices Inc., designed to provide exceptional performance for a wide range of applications. This component is part of the nanoDAC+™ series, which stands out for its small size, high accuracy, and low power consumption. The AD5675BCPZ-REEL7 is suitable for applications in automation, industrial control systems, medical equipment, and any other system that requires precise digital-to-analog conversion.

Key Features

• Resolution: The AD5675BCPZ-REEL7 offers a 16-bit resolution which ensures high precision in analog outputs.
• Channel Count: It features eight DAC channels, making it versatile for multi-channel applications.
• Output Range: This DAC supports a wide range of selectable output ranges, providing flexibility in various use cases.
• Interface: The product includes a user-friendly I2C interface, facilitating easy communication with microcontrollers and processors.
• Power Supply: It operates with a 2.7V to 5.5V power supply, accommodating diverse system power requirements.

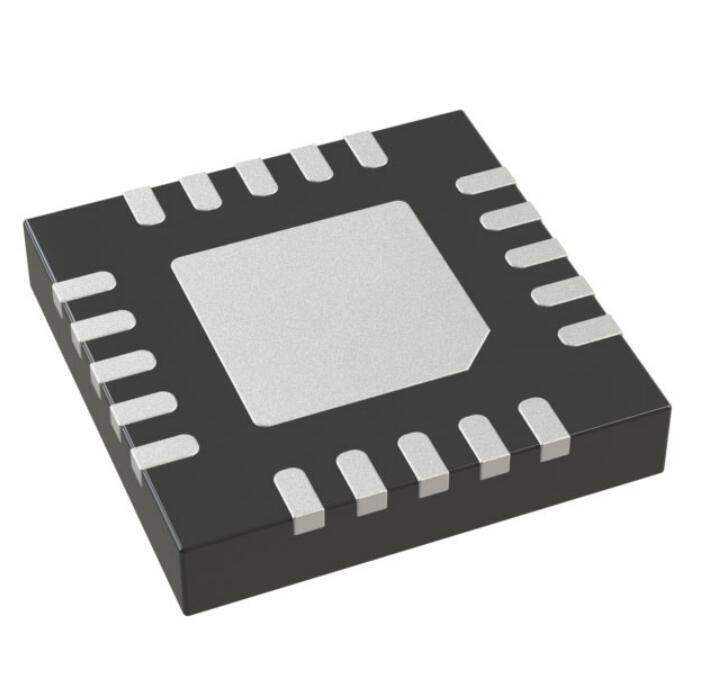

• Package: Housed in a compact LFCSP (Lead Frame Chip Scale Package), the AD5675BCPZ-REEL7 is optimized for space-constrained applications.
• Temperature Range: The device is operational over an extended temperature range, ensuring reliability in various environmental conditions.

Applications

The AD5675BCPZ-REEL7 is adept at handling complex tasks in sectors such as:

• Process Control: Provides the precision control required for managing industrial processes.
• Data Acquisition Systems: Enhances the accuracy of data captured from various sensors and inputs.
• Medical Equipment: Ensures the high level of precision necessary for critical medical applications.
• Portable Battery-Powered Instruments: Benefits from the low power consumption of the AD5675BCPZ-REEL7.
• Waveform Generation: Capable of producing precise and smooth analog waveforms for testing and simulation.

Quality and Reliability

Analog Devices Inc. is renowned for its commitment to quality, and the AD5675BCPZ-REEL7 is no exception. It is designed to meet stringent performance standards and is available in a reel package for easy integration into automated manufacturing processes. With its robust design and advanced technology, the AD5675BCPZ-REEL7 is an excellent choice for professionals seeking a reliable and high-performing DAC solution.
