AD5641ACPZ-REEL7 - Analog Devices Inc.

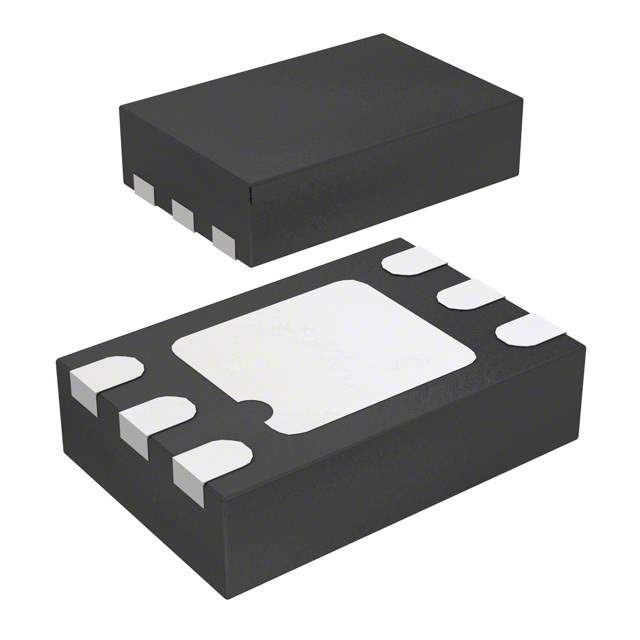

The AD5641ACPZ-REEL7, from Analog Devices Inc., is a high-precision, nanoDAC converter that offers a compact, high-performance solution for a wide range of applications. This digital-to-analog converter (DAC) is part of the nanoDAC family and comes in a 3mm x 3mm LFCSP (Lead Frame Chip Scale Package), which is ideal for space-constrained applications.

Featuring a 14-bit resolution, the AD5641ACPZ-REEL7 provides fine-grain control, making it suitable for applications requiring precise analog output. This level of resolution ensures smooth and accurate signal generation, which is critical for applications such as process control systems, data acquisition systems, and digital gain and offset adjustment.

The device operates from a single 2.7V to 5.5V supply, providing flexibility in various power environments and making it compatible with both 3V and 5V logic. Its low power consumption is an asset for portable and battery-powered applications, where power efficiency is paramount.

The AD5641ACPZ-REEL7 features a versatile 3-wire serial interface that is SPI, QSPI, MICROWIRE, and DSP compatible, allowing for easy integration into a wide range of systems. This interface simplifies the communication between the DAC and the host microcontroller or processor, reducing the complexity of system design.

Additionally, the device includes a power-down feature that reduces the current consumption to 200 nA at 3 V, which is particularly useful in power-sensitive applications. The DAC's output is buffered, resulting in a low output impedance that can drive capacitive loads, enhancing its versatility in various output configurations.

The AD5641ACPZ-REEL7 is supplied in a tape and reel format (REEL7), which facilitates automated manufacturing processes, making it an excellent choice for mass production requirements. With its robust feature set and compact packaging, this DAC from Analog Devices Inc. is a reliable choice for designers seeking precision and efficiency in their analog output applications.
