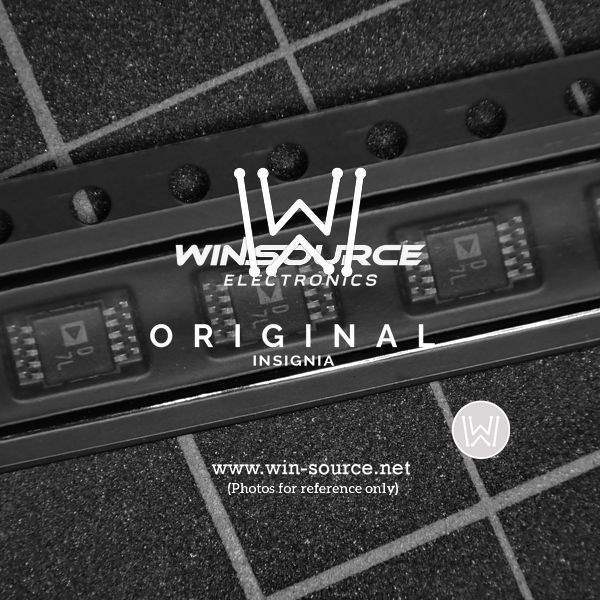

The AD5624RBRMZ-3 is a highly integrated digital-to-analog converter (DAC) solution from Analog Devices Inc., designed for precision applications that demand a compact footprint without compromising on performance. This product is part of the nanoDAC® series, which are known for their low power consumption and high accuracy.

Featuring a 12-bit resolution, the AD5624RBRMZ-3 provides fine-grain control over analog outputs, making it ideal for intricate tasks such as process control systems, data acquisition systems, and digital gain and offset adjustment. The DAC operates from a single 2.7V to 5.5V supply, offering flexibility in various power environments.

With an on-chip reference, the AD5624RBRMZ-3 ensures stability and reduces the need for external components. The internal reference has an initial accuracy of 2.5V, and it can be turned off if an external reference is preferred, further enhancing the versatility of the device. The DAC's reference is also buffered, which helps to isolate the DAC from the reference and supply voltages, ensuring consistent performance.

Communication with the AD5624RBRMZ-3 is achieved through a serial peripheral interface (SPI) that is compatible with standard SPI, QSPI™, MICROWIRE™, and DSP interface standards. This makes it easily integrated into a wide array of microcontroller-based systems. Moreover, the device includes a power-down mode which significantly reduces the power consumption when not in active use.

Packaged in a compact 10-lead MSOP, the AD5624RBRMZ-3 is designed for space-constrained applications. It operates over the extended industrial temperature range of −40°C to +105°C, ensuring reliable performance in harsh environments. With its combination of features, the AD5624RBRMZ-3 is a robust solution for designers looking to add precise analog output capabilities to their systems with minimal design effort.

Analog Devices Inc. has a reputation for delivering high-quality, reliable components, and the AD5624RBRMZ-3 is no exception, representing a blend of precision engineering and practical design.
