AD558TD

Part No AD558TD
Manufacturer Analog Devices Inc.
Catalog Data Acquisition - Digital to Analog Converters (DAC)
Description DACPORT Low Cost, Complete uP-Compatible 8-Bit DAC
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Manufacturer Analog Devices Inc.
Series DACPORT
Packaging Tube
Resolution 8
Number of D/A Converters 1
Settling Time 3μs
Output Type Voltage - Buffered
Data Interface Parallel
Reference Type Internal
Operating Supply Voltage 4.5 V ~ 16.5 V
Voltage - Supply, Digital 4.5 V ~ 16.5 V
INL/DNL (LSB) ±0.375 (Maximum), -
Architecture R-2R
Operating Temperature Range -55°C ~ 125°C

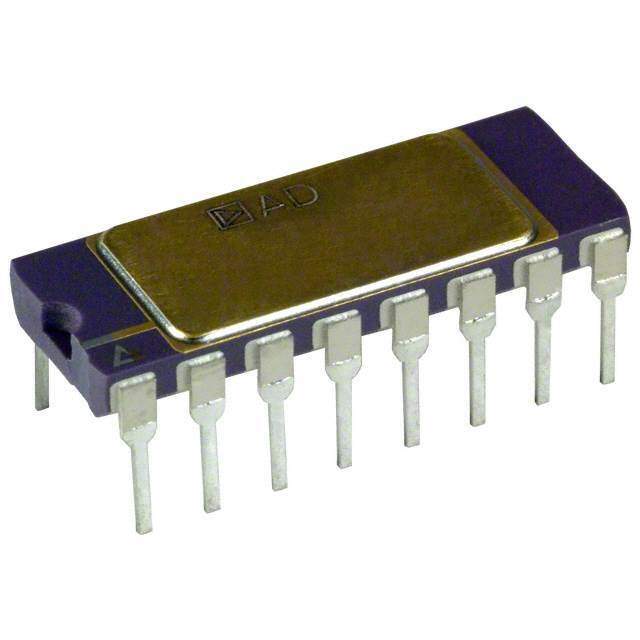

Package 16-CDIP (0.300", 7.62mm)
Manufacturer Package 16-CDIP Side Brazed
Win Source Part Number 1136327-AD558TD
Manufacturer Homepage www.analog.com
Family Name AD558
Introduction Date October 26, 1995
ECCN 3A001.a.2.c
Country of Origin Philippines
Halogen Free Compliant
Estimated EOL Date 2019
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian AD558TD CAD Model

Description

The AD558TD is a highly integrated digital-to-analog converter (DAC) product from the reputable manufacturer, Analog Devices Inc. This precision DAC is designed for applications that require a reliable and accurate conversion of digital signals into their analog counterparts. The AD558TD is an ideal component for use in a wide range of electronic equipment, including industrial control systems, data acquisition systems, and high-end audio equipment.

Key Features:

  • Resolution: The AD558TD boasts an 8-bit resolution, providing a fine granularity of analog output levels for precise control and signal processing tasks.
  • Monolithic Construction: This DAC features a monolithic construction, which enhances its reliability and reduces susceptibility to environmental factors and noise, ensuring consistent performance.
  • Integrated Reference: An on-chip precision voltage reference provides stable and accurate reference voltage, which is crucial for maintaining the integrity of the analog output over time and varying conditions.
  • Single Supply Operation: The device operates on a single +5V power supply, simplifying the power design of the overall system and reducing power consumption.
  • Fast Settling Time: The AD558TD offers a fast settling time, making it suitable for applications that demand quick response times and high-speed operations.

Performance and Applications:

The AD558TD delivers a robust performance with its high precision and stability. The device's compact package and ease of interfacing with microprocessors and other digital systems make it a versatile choice for designers. Common applications include programmable gain amplifiers, motor control circuits, and adjustable power supplies.

As a testament to its reliability, the AD558TD is available in a hermetically sealed ceramic DIP (dual in-line package), ensuring long-term durability and resistance to harsh environments. Whether for industrial, commercial, or high-precision applications, the AD558TD from Analog Devices Inc. stands out as a top-tier DAC solution that engineers and designers can rely on.
