Product Overview: AD5422AREZ-REEL

The AD5422AREZ-REEL is a high-performance, single-channel, serial input, current source and voltage output digital-to-analog converter (DAC) from Analog Devices Inc., a leading manufacturer in precision analog microelectronics. This product is part of the REEL packaging series, indicating its availability on tape and reel for automated assembly processes, making it ideal for high-volume production.

Key Features

• Flexible Output Ranges: The AD5422AREZ-REEL provides programmable current output ranges of 4-20mA, 0-20mA, or an overrange of 0-24mA. Voltage output ranges include 0-5V, 0-10V, ±5V, and ±10V.
• High Resolution: It offers a 16-bit resolution which ensures precise control over output signals for critical applications.
• On-Chip Output Fault Detection: The device features an on-chip diagnostic function that can detect open circuit, short circuit, over-temperature, and under-voltage conditions, enhancing system reliability.
• Thermal Shutdown: An integrated thermal shutdown feature protects the device from damage due to overheating.
• Robust Interface: The serial peripheral interface (SPI) is compatible with 1.8V to 5V logic levels, allowing for easy integration into various digital systems.

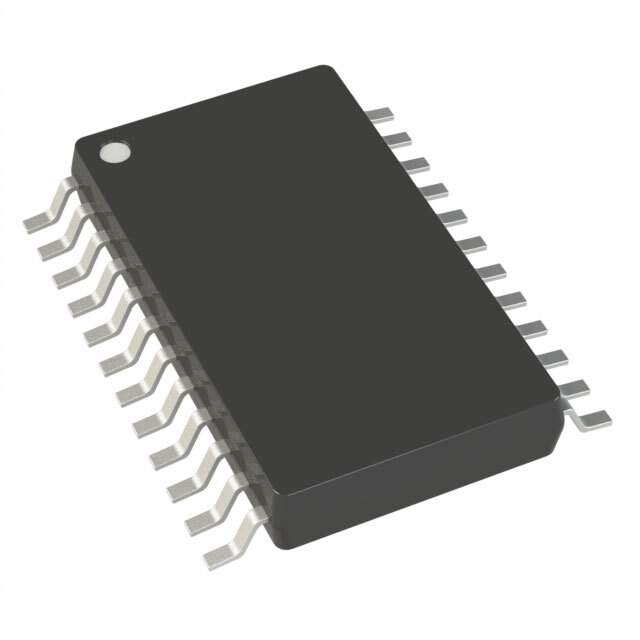

• Compact Package: The AD5422AREZ-REEL comes in a compact 24-lead TSSOP package, which is suitable for space-constrained applications.

Applications

The versatility and precision of the AD5422AREZ-REEL make it an excellent choice for a wide range of industrial and instrumentation applications. These include process control, actuator control, PLCs (Programmable Logic Controllers), and HART (Highway Addressable Remote Transducer) networked devices. Its reliable performance under harsh conditions makes it particularly well-suited for factory automation and control systems.

Quality and Reliability

Analog Devices Inc. is known for its commitment to quality and the AD5422AREZ-REEL is no exception. It is designed to meet stringent industry standards, ensuring high reliability and performance consistency across applications. Engineers and designers can trust this DAC to deliver precise control and robust operation in their critical designs.
