AD5160BRJZ5-RL7 Digital Potentiometer

The AD5160BRJZ5-RL7 is a high-performance digital potentiometer designed and manufactured by Analog Devices Inc., a leader in precision high-performance integrated circuits. This compact digital potentiometer offers a perfect solution for applications requiring a programmable resistance setting. It is widely used in adjustment of various parameters in electronic circuits, such as controlling volume, adjusting brightness, or tuning filters.

Key Features:

• Resistance Options: The AD5160BRJZ5-RL7 comes with a 5 kΩ end-to-end resistance value, providing a wide range of adjustability for various applications.

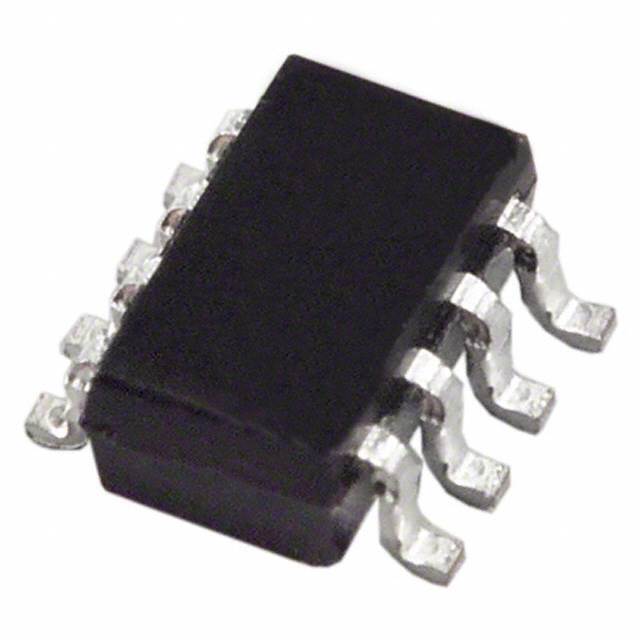

• Compact SOT-23 Package: Encased in a small SOT-23 package, this digital potentiometer is ideal for space-constrained applications.
• 256-Position: It offers 256 resistive positions, allowing for fine granularity in resistance adjustment.
• Single-Supply Operation: This device operates from a 2.7V to 5.5V single supply, making it versatile for both 3V and 5V systems.
• I2C Compatible Interface: The digital potentiometer features an I2C-compatible serial interface, facilitating easy communication with microcontrollers and other digital systems.
• Nonvolatile Memory: It includes nonvolatile memory (EEPROM) to store the preferred settings, ensuring the last resistance setting is retained even after power-off.
• Low Temperature Coefficient: With a low temperature coefficient, the AD5160BRJZ5-RL7 ensures stable performance over a wide temperature range.

Applications:

The AD5160BRJZ5-RL7 is suitable for a variety of applications, including:

• Automated product calibration
• Adjustable power supplies
• Portable electronics
• Instrumentation
• LCD screen adjustment
• Audio/visual equipment

With its robust design and precise control, the AD5160BRJZ5-RL7 digital potentiometer from Analog Devices Inc. is an excellent choice for engineers and designers looking to add reliable and flexible resistance tuning to their electronic projects.
