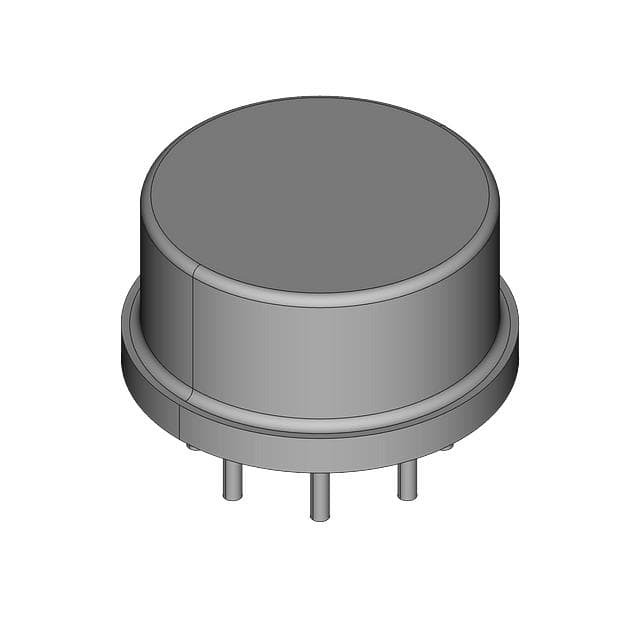

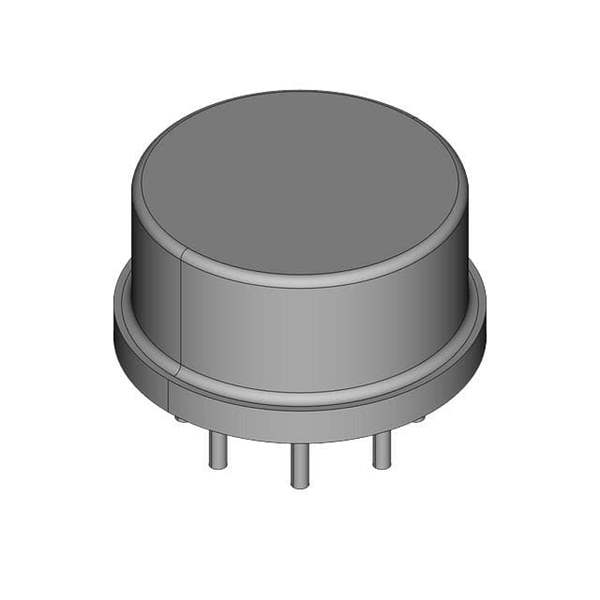

The AD506KH from Analog Devices Inc. is a high-performance monolithic operational amplifier that has been engineered with precision, reliability, and versatility in mind. This operational amplifier is known for its excellent accuracy and stability, making it an ideal choice for applications requiring precise signal conditioning, such as instrumentation, data acquisition systems, and high-quality audio equipment.

Key Features

• High Precision: The AD506KH boasts exceptional precision with very low offset voltage and drift over temperature, ensuring reliable performance in critical applications.
• Low Noise: Designed with low noise characteristics, this op-amp is suitable for audio and instrumentation applications where maintaining signal integrity is paramount.
• Wide Bandwidth: It offers a wide bandwidth, which allows it to handle a broad range of frequencies without compromising signal quality.
• Stable with High Capacitive Loads: The AD506KH is stable with capacitive loads, making it versatile for various circuit configurations.
• Durable: Housed in a robust package, the AD506KH is designed to withstand challenging environmental conditions, ensuring long-term reliability.

Applications

The versatility of the AD506KH allows it to be used across a wide array of applications. It is particularly well-suited for:

• Professional audio equipment
• Precision data systems
• Test and measurement instrumentation
• Analog signal processing
• Active filters and integrators

Technical Specifications

The AD506KH features a dual-supply voltage range of ±4.5V to ±18V and can operate at a single supply voltage as well. It also includes short circuit protection and has an operating temperature range of -55°C to +125°C, ensuring performance in extreme conditions.

With its blend of precision, low noise, and high bandwidth, the AD506KH from Analog Devices Inc. is a superior choice for professionals seeking an op-amp that delivers consistent, high-quality performance.
