The AD1836ACS is a high-performance audio codec from Analog Devices Inc., designed to deliver exceptional sound quality for professional and consumer audio applications. This integrated circuit features multiple analog-to-digital (ADC) and digital-to-analog (DAC) converters, making it an ideal choice for a wide range of audio processing tasks.

Key Features:

• Multi-Channel Audio: The AD1836ACS provides six DAC channels and two ADC channels, supporting 24-bit audio data for high-fidelity playback and recording.
• High Sampling Rates: With support for sampling rates up to 96 kHz, the codec ensures that audio is captured and reproduced with exceptional clarity and detail.
• Low Distortion: The device boasts a very low total harmonic distortion plus noise (THD+N) specification, ensuring pure and accurate audio reproduction.
• Flexible Interface: The codec features a serial audio interface that is compatible with a variety of audio data formats, providing ease of integration with digital signal processors (DSPs) and microcontrollers.
• On-Chip Volume Control: Individual channel volume control is available, offering precise adjustment of audio levels without the need for external components.
• Programmable Filters: On-chip digital filters allow for customizable audio processing, suitable for tailoring the audio response to specific applications.

Applications:

• Digital Audio Effects Processors
• Multichannel Audio Systems
• Home Theater Systems
• Automotive Audio Systems
• Professional Mixing Consoles

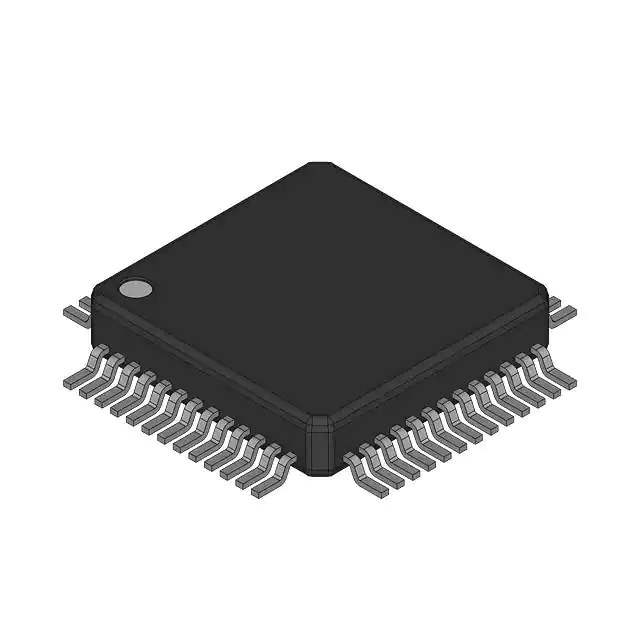

The AD1836ACS is housed in a 52-lead MQFP (Plastic Metric Quad Flat Pack) package, ensuring a compact footprint for space-constrained designs. Its robust architecture and comprehensive feature set make it a versatile and reliable choice for designers seeking to enhance the audio performance of their products. Whether for home entertainment, professional audio, or automotive systems, the AD1836ACS delivers the quality and performance expected from a leader in analog and digital signal processing technology.

Note: For detailed technical specifications, application notes, and support documentation, please refer to the official datasheet and product resources provided by Analog Devices Inc.
