Same model may have multiple batches, images only for reference.

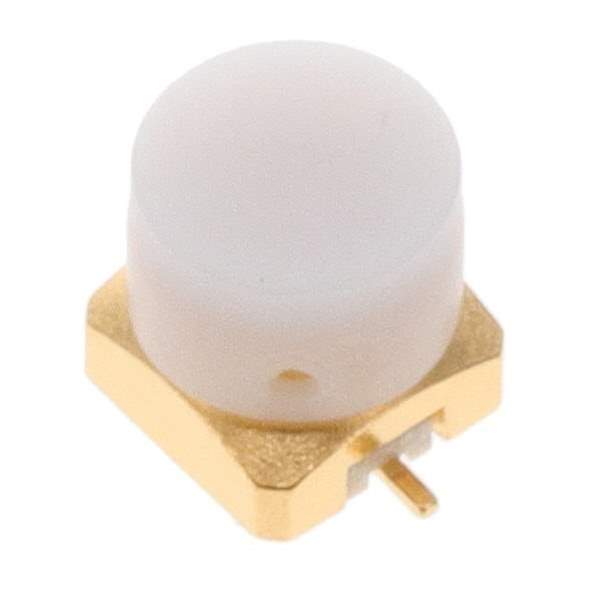

SMP-MSSB-PCS15T Real Image
Same model may have multiple batches, images only for reference.

SMP-MSSB-PCS15T

Part No SMP-MSSB-PCS15T
Manufacturer Amphenol
Catalog Coaxial Connectors (RF)
Description CONN SMP JACK STR SMD 50 OHM / SMP Connector Jack, Male Pin 50Ohm Surface Mount Solder
Datasheet
SMP-MSSB-PCS15T Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF)
Mfr Amphenol RF
Package Tape & Reel
Connector Style SMP
Connector Type Jack, Male Pin
Contact Termination Solder
Shield Termination Solder
Impedance 50Ohm
Mounting SMD (SMT)
Fastening Type Snap-On
Frequency - Max 18 GHz
Number of Ports 1
Features Smooth Bore
Housing Color Gold
Center Contact Material Brass
Body Material Brass
Body Finish Gold
Center Contact Plating Gold
Dielectric Material Polytetrafluoroethylene (PTFE)
Temperature Range - Operating -65°C ~ 165°C
Mating Cycles 1000
Base Product Number SMP-MSSB
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4010
Other Names ARF3172DKR,ARF3172TR,ARF3172CT
Standard Package 800
Win Source Part Number 1166591-SMP-MSSB-PCS15T
Ultra Librarian 3D Model Ultra Librarian SMP-MSSB-PCS15T CAD Model

Description

The SMP-MSSB-PCS15T connector is a high-quality connector designed for use in electronic devices.

  • Feature: smooth bore
  • Frequency Range: up to 18 GHz
  • Material: brass
  • Finish: gold finish
  • Impedance: 50 Ohm
  • Fastening Type: snap-on
  • Mounted: SMD (SMT)
  • Operating Temperature Range: -65°C to 165°C
  • Mating Cycle: 1000
  • Suitable For: coaxial connectors (RF)
  • Current Rating: 2A (AC/DC)
  • REACH: affected
