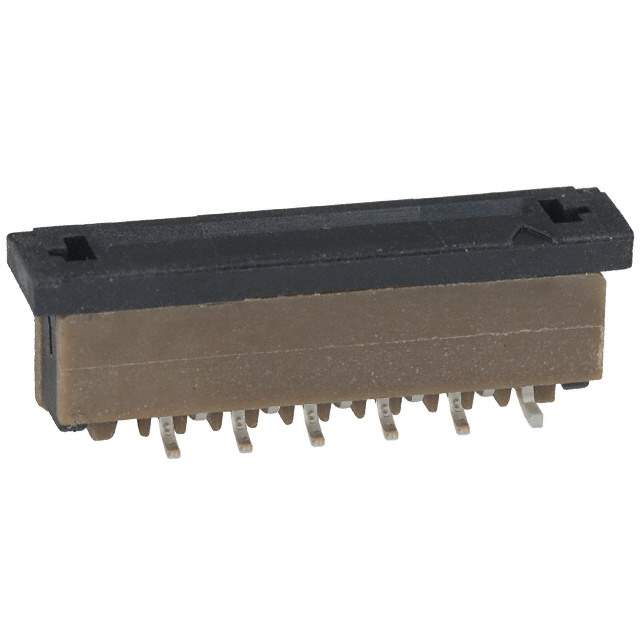

SFW10S-2STME1LF Real Image
Same model may have multiple batches, images only for reference.

SFW10S-2STME1LF

Part No SFW10S-2STME1LF
Manufacturer Amphenol
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC FPC VERT 10POS 1MM SMD / 10 Position FFC, FPC Connector Contacts, Vertical - 1 Sided 0.039" (1.00mm) Surface Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Amphenol ICC (FCI)
Series SFW
Package Tape & Reel
Flat Flex Type FFC, FPC
Mounting SMD (SMT)
Connector/Contact Type Contacts, Vertical - 1 Sided
Number of Positions 10
Pitch 0.039" (1.00mm)
Termination Solder
FFC, FCB Thickness 0.33mm
Height Above Board 0.209" (5.30mm)
Contact Material Phosphor Bronze
Contact Finish Tin
Housing Material Thermoplastic, Glass Filled
Actuator Material Thermoplastic, Glass Filled
Features Zero Insertion Force (ZIF)
Voltage Rating 100V
Temperature Range - Operating -55°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1A
Housing Color Brown
Mating Cycles 20
Base Product Number SFW10S
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4051
Other Names 609-1141-6,609-1141-2,609-1141-1,SFW10S2STME1LF
Standard Package 1,000
Win Source Part Number 1128004-SFW10S-2STME1LF
Ultra Librarian 3D Model Ultra Librarian SFW10S-2STME1LF CAD Model

Description

The Amphenol ICC (FCI) SFW10S-2STME1LF is a flat flexible connector that has a zero insertion force (ZIF) feature and is manufactured by Amphenol ICC (FCI).

  • Pitch: 0.039 inches
  • Termination: solder
  • Material: phosphor bronze
  • Voltage rating: 100V
  • UL94 V-0 rated: yes
  • Temperature range: -55°C to 105°C
