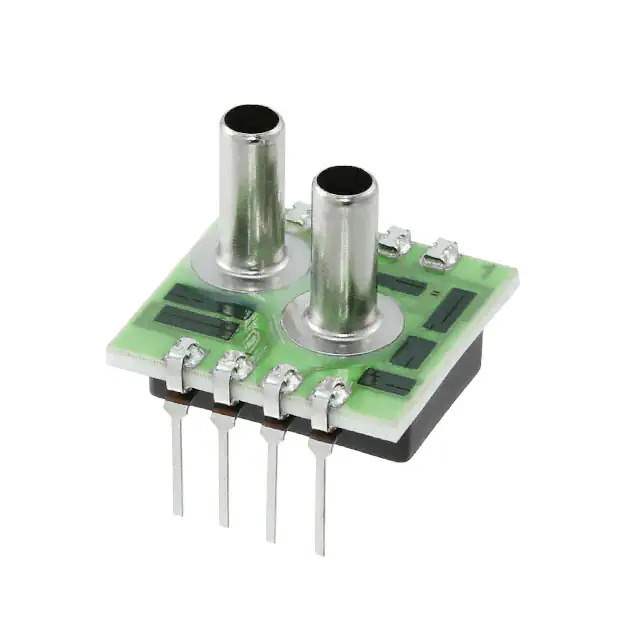

NPP-301B-100A Real Image
Same model may have multiple batches, images only for reference.

NPP-301B-100A

Part No NPP-301B-100A
Manufacturer Amphenol
Catalog Pressure Sensors, Transducers
Description SENSOR 15PSIA 0.08" .06V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers - Pressure Sensors, Transducers
Mfr Amphenol
Series NPP-301
Package Tube
Product Status Active
Applications Board Mount
Pressure Type Absolute
Operating Pressure 15PSI (103.42kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 60 mV (3V)
Accuracy ±0.2%
Voltage - Supply 3V ~ 10V
Port Size Male - 0.08" (2.04mm) Tube, Dual
Port Style Barbless
Termination Style Gull Wing
Maximum Pressure 45PSI (310.26kPa)
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case 8-SOIC (0.154", 3.90mm Width)
Base Product Number NPP-301B
Standard Package 100 pcs
MSL Level 6 (Time on Label)
ECCN EAR99
HTSUS 9026.20.4000
Win Source Part Number 846184-NPP-301B-100A
Ultra Librarian 3D Model Ultra Librarian NPP-301B-100A CAD Model

Description

The 846184-NPP-301B-100A is a pressure sensor from Amphenol.

  • Category: Sensors and Transducers, Pressure Sensors
  • Series: NPP-301
  • Termination Style: Gull Wing
  • Output Type: Wheatstone Bridge
  • Output Range: 0 mV to 60 mV @ 3V
  • Accuracy: ±0.2%
  • Pressure Type: Absolute
  • Operating Pressure: 15PSI (103.42kPa)
  • Maximum Pressure: 45PSI (310.26kPa)
  • Voltage Supply: 3V to 10V
  • Mounting Type: Surface Mount
  • Package: 8-SOIC
  • Width: 0.154" (3.90mm)
  • Temperature Range: -40°C to 125°C
