Same model may have multiple batches, images only for reference.

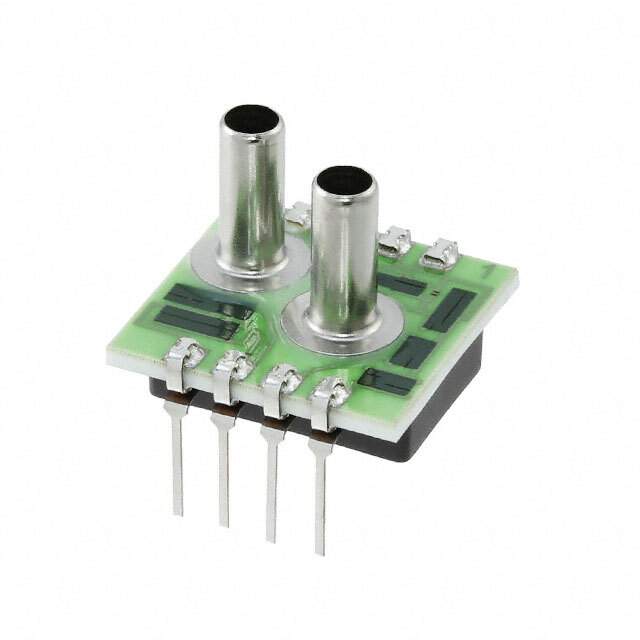

NPH-8-100DH Real Image
Same model may have multiple batches, images only for reference.

NPH-8-100DH

Part No NPH-8-100DH
Manufacturer Amphenol
Catalog Pressure Sensors, Transducers
Description SENSOR PRES 15PSI DIFF TO-8 / Pressure Sensor 15PSI (103.42kPa) Differential Male - 0.19" (4.83mm) Tube, Dual 0 mV ~ 100 mV TO-233AA, TO-8-3 Metal Can
Datasheet
NPH-8-100DH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Manufacturer Amphenol NovaSensor
Packaging Bulk
Applications Board Mount
Pressure Type Differential
Operating Pressure 15PSI (103.42kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 100 mV
Accuracy ±0.1%
Port Size Male - 0.19" (4.83mm) Tube, Dual
Port Style Barbless
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure 58.02PSI (400kPa)
Temperature Range - Operating -40°C ~ 125°C
Case / Package TO-233AA, TO-8-3 Metal Can
Supplier Device Package TO-8
Base Product Number NPH-8
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
ECCN EAR99
HTSUS 9026.20.4000
Other Part Number 45-NPH-8-100DH,235-1504-ND,235-1504,NPH-8-100DH-ND
Standard Package 45
Win Source Part Number 1336619-NPH-8-100DH
Ultra Librarian 3D Model Ultra Librarian NPH-8-100DH CAD Model

Description

The NPH-8-100DH is a differential pressure sensor that is part of the NPH-8 series, manufactured by Amphenol NovaSensor.

  • Packaging: Bulk
  • Termination Style: PC Pin
  • Temperature Compensation: Yes
  • Mounting Type: Board Mount
  • Standard Package: 45 pieces
  • Output Type: Wheatstone Bridge
  • Output: 0 mV to 100 mV
  • Accuracy: ±0.1%
  • Operating Pressure: 15PSI (103.42kPa)
  • Maximum Pressure: 58.02PSI (400kPa)
  • Voltage Supply: -
  • Supplier Device Package: TO-8
  • Operating Temperature: -40°C to 125°C
  • ECCN: EAR99
  • HTSUS: 9026.20.4000
  • ROHS3 Compliant: Yes
