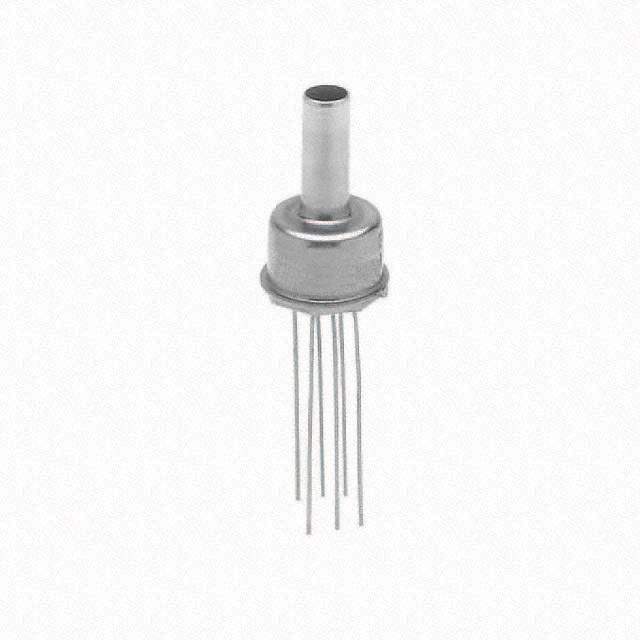

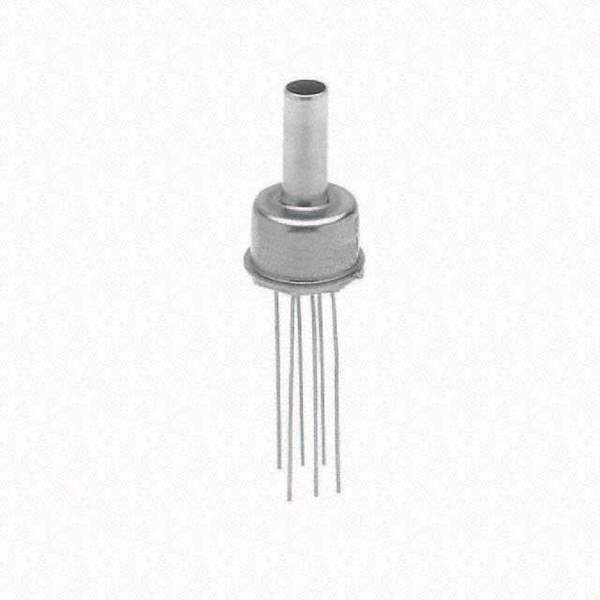

NPH-8-007GH Real Image
Same model may have multiple batches, images only for reference.

NPH-8-007GH

Part No NPH-8-007GH
Manufacturer Amphenol
Catalog Pressure Sensors, Transducers
Description SENSOR PRES 1PSI GAUGE TO-8 / Pressure Sensor 1.02PSI (7kPa) Vented Gauge Male - 0.19" (4.83mm) Tube 0 mV ~ 75 mV TO-233AA, TO-8-3 Metal Can
Datasheet
NPH-8-007GH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Sensors, Transducers>Pressure Sensors, Transducers
Manufacturer Amphenol NovaSensor
Packaging Bulk
Applications Board Mount
Pressure Type Vented Gauge
Operating Pressure 1.02PSI (7kPa)
Output Type Wheatstone Bridge
Output 0 mV ~ 75 mV
Accuracy ±1.5%
Port Size Male - 0.19" (4.83mm) Tube
Port Style Barbless
Features Temperature Compensated
Termination Style PC Pin
Maximum Pressure 5.08PSI (35kPa)
Temperature Range - Operating -40°C ~ 125°C
Case / Package TO-233AA, TO-8-3 Metal Can
Supplier Device Package TO-8
Base Product Number NPH-8
RoHS Status ROHS3 Compliant
MSL Level Not Applicable
ECCN EAR99
HTSUS 9026.20.4000
Other Part Number 235-1501,NPH-8-007GH-ND
Standard Package 45
Win Source Part Number 1336620-NPH-8-007GH
Ultra Librarian 3D Model Ultra Librarian NPH-8-007GH CAD Model

Description

The NPH-8-007GH is a vented gauge pressure sensor designed by Amphenol NovaSensor.

  • Supplier Device Package: TO-8
  • Pressure Range: 1.02PSI to 5.08PSI
  • Output: 0mV to 75mV via Wheatstone bridge
  • Accuracy: ±1.5%
  • Termination Style: PC pin
  • Operating Temperature: -40°C to 125°C
  • Package Quantity: 45 sensors in a bulk package
