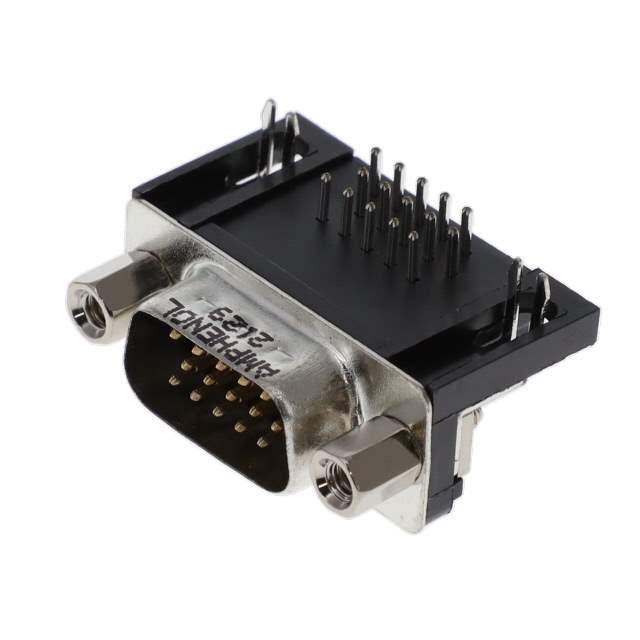

L717HDE15PD1CH4F Real Image
Same model may have multiple batches, images only for reference.

L717HDE15PD1CH4F

Part No L717HDE15PD1CH4F
Manufacturer Amphenol
Catalog D-Sub, D-Shaped Connectors - Assemblies
Description CONN D-SUB HD PLUG 15P R/A SLDR / 15 Position D-Sub, High Density Plug, Male Pins Connector
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - D-Sub, D-Shaped Connectors - D-Sub Connector Assemblies
Mfr Amphenol ICC (Commercial Products)
Series HD
Package Tray
Connector Style D-Sub, High Density
Connector Type Plug, Male Pins
Number of Positions 15
Number of Rows 3
Mounting Type Through Hole, Right Angle
Shell Size, Connector Layout 1 (DE, E) High Density
Contact Type Signal
Flange Feature Mating Side, Female Screwlock (4-40)
Termination Solder
Shell Material, Finish Steel, Tin Plated
Contact Finish Gold
Contact Finish Thickness Flash
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A
Backset Spacing 0.350" (8.89mm)
Features Board Lock, Grounding Indents, Grounding Tabs
Voltage Rating 250V
Color Black
Contact Form Stamped
Dielectric Material Thermoplastic, Glass Filled
Contact Material Brass
Temperature Range - Operating -55°C ~ 105°C
Base Product Number L717HDE15
Standard Package 90
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1338001-L717HDE15PD1CH4F
Ultra Librarian 3D Model Ultra Librarian L717HDE15PD1CH4F CAD Model

Description

This D-sub connector assembly is a high-quality, durable component designed for use in electronic devices. D-Sub Connector Assembly from Amphenol ICC (Commercial Products).

  • Connector Style: D-Sub
  • Connector Type: Plug, Male Pin
  • Number of Positions: 15
  • Number of Rows: 1
  • Features: Board Lock, Grounding Indents, Grounding Tabs
  • Termination: Solder
  • Contact Finish: Gold
  • Contact Finish Thickness: Flash
  • Voltage - Rated: 250V
  • Ingress Protection: UL94 V-0
  • Mounting Type: Through Hole, Right Angle
  • Backset Spacing: 0.350" (8.89mm)
  • Current Rating (Amps): 3A
  • Operating Temperature: -55°C ~ 105°C
  • Color: Black
