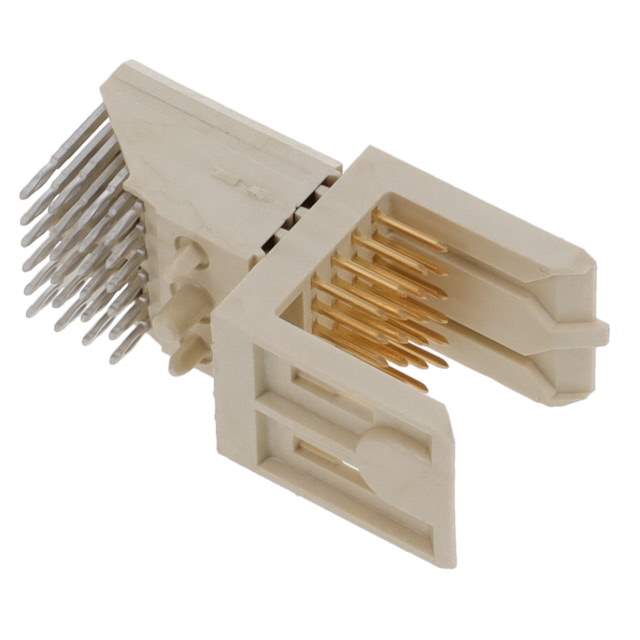

HM1L41ADP000H6PLF Real Image
Same model may have multiple batches, images only for reference.

HM1L41ADP000H6PLF

Part No HM1L41ADP000H6PLF
Manufacturer Amphenol
Catalog Backplane Connectors
Description CONN HEADER 24POS EDGE MNT / 24 Connector Header, Male Pins Board Edge, Through Hole, Right Angle Natural, White
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Backplane Connectors - Specialized
Mfr Amphenol ICC (FCI)
Series Metral®
Package Tray
Connector Type Header, Male Pins
Number of Positions 24
Number of Positions Loaded All
Pitch 0.079" (2.00mm)
Number of Rows 4
Mounting Type Board Edge, Through Hole, Right Angle
Termination Press-Fit
Features Board Guide
Contact Finish Gold
Contact Finish Thickness 30.0µin (0.76µm)
Color Natural, White
Current Rating (Amps) 1A
Material Flammability Rating UL94 V-0
Temperature Range - Operating -55°C ~ 125°C
Base Product Number HM1L41
MSL Level 1 (Unlimited)
REACH Status REACH Affected
ECCN EAR99
HTSUS 8536.69.4040
Standard Package 120
Win Source Part Number 1178138-HM1L41ADP000H6PLF
Ultra Librarian 3D Model Ultra Librarian HM1L41ADP000H6PLF CAD Model

Description

The Amphenol ICC (FCI) HM1L41ADP000H6PLF backplane connector is a specialized connector that features a board guide and is a header, male pins connector type.

  • Product Name: HM1L41ADP000H6PLF
  • Manufacturer: Amphenol ICC (FCI)
  • Type: Backplane Connector
  • Feature: Board Guide
  • Connector Type: Header, Male Pins
  • Positions: 24
  • Rows: 4
  • Pitch: 0.079" (2.00mm)
  • Termination: Press-Fit
  • Contact Finish: Gold
  • Contact Finish Thickness: 30.0μin (0.76μm)
  • Material Flammability Rating: UL94 V-0
  • Current Rating: 1A
