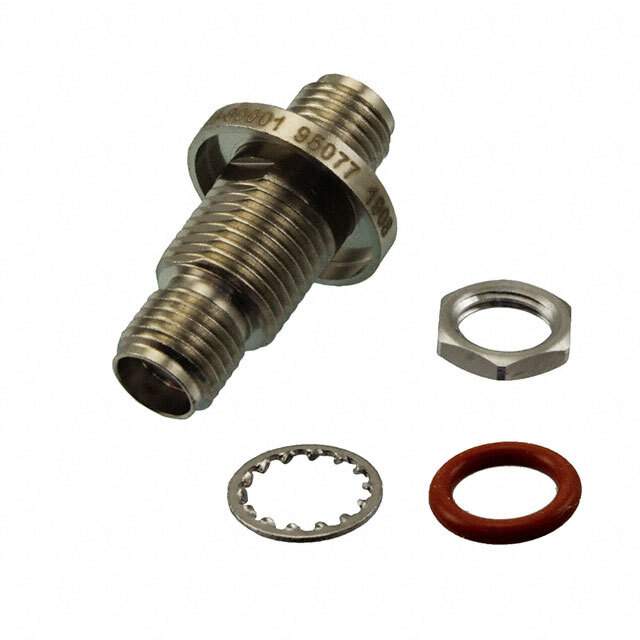

M55339/28-30001 Real Image
Same model may have multiple batches, images only for reference.

M55339/28-30001

Part No M55339/28-30001
Manufacturer Amphenol
Catalog Coaxial Connectors (RF) - Adapters
Description CONN ADAPT JACK-JACK SMA 50 OHM / Adapter Coaxial Connector SMA Jack, Female Socket To SMA Jack, Female Socket 50Ohm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Coaxial Connectors (RF) - Adapters
Mfr Amphenol SV Microwave
Series SMA
Package Bulk
Adapter Type Jack to Jack
Conversion Type Same Series
Adapter Series SMA to SMA
Center Gender Female to Female
Convert From (Adapter End) SMA Jack, Female Socket
Convert To (Adapter End) SMA Jack, Female Socket
Impedance 50Ohm
Style Straight
Mounting Type Panel Mount
Mounting Feature Bulkhead
Fastening Type Threaded, Threaded
Frequency - Max 12.4 GHz
Center Contact Plating Gold
Features Hermetically Sealed
Includes 3 pcs - 1 Connector, 1 Lockwasher, 1 Nut
Body Material Stainless Steel
Center Contact Material Beryllium Copper
Dielectric Material Polytetrafluoroethylene (PTFE)
Mating Cycles 500
Temperature Range - Operating -65°C ~ 165°C
Base Product Number M55339
MSL Level Not Applicable
ECCN EAR99
HTSUS 8536.69.4010
Standard Package 50
Win Source Part Number 1038167-M55339/28-30001
Ultra Librarian 3D Model Ultra Librarian M55339/28-30001 CAD Model

Description

The M55339/28-30001 is a straight jack to jack adapter, part of the SMA series.

  • Adapter Type: Straight Jack to Jack
  • Series: SMA
  • Maximum Frequency: 12.4GHz
  • Impedance: 50Ohm
  • Feature: Hermetically Sealed
  • Fastening Type: Threaded
  • Application: Coaxial Connectors (RF)
  • Mounting: Panel Through
  • Packaging: Bulk
  • Included: 3 pieces - 1 connector, 1 lockwasher, and 1 nut
  • Operating Temperature: -65°C to 165°C
