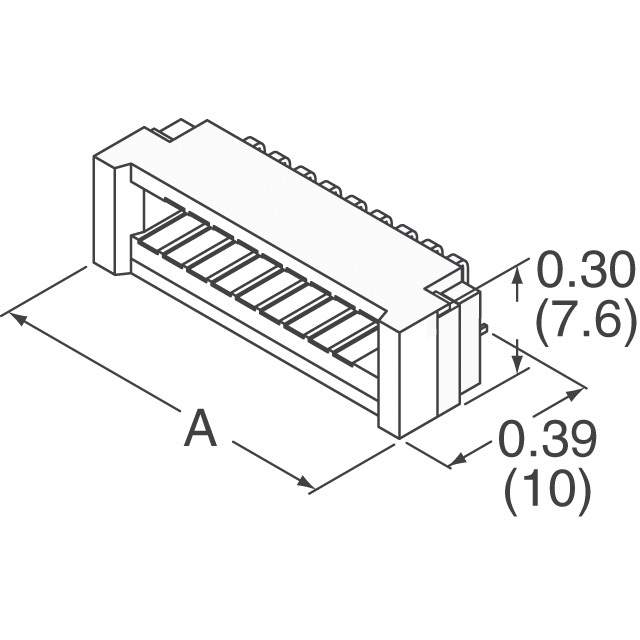

BTFW16R-3RSTE1LF Real Image
Same model may have multiple batches, images only for reference.

BTFW16R-3RSTE1LF

Part No BTFW16R-3RSTE1LF
Manufacturer Amphenol
Catalog Rectangular Connectors
Description CONN RCPT 16POS R/A SMD TIN
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Features 16 Position Connector Receptacle, Outer Shroud Contacts Surface Mount, Right Angle Tin
Manufacturer AMPHENOL
Series BTFW
Package Reel - TR
Part Status Obsolete
Mounting Surface Mount, Right Angle
Family Name BTFW16R
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Part Number 609-1472-1, 609-1472-1-ND, 609-2472-2, BTFW16R3RSTE1LF, 609-2472-1
Quantity per package 700
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 864850-BTFW16R-3RSTE1LF
Ultra Librarian 3D Model Ultra Librarian BTFW16R-3RSTE1LF CAD Model

Description

The AMPHENOL BTFW series is a 16 position connector receptacle with outer shroud contacts that are surface mountable at a right angle.

  • Manufacturer: AMPHENOL
  • Series: BTFW
  • Connector Position: 16
  • Mounting: Surface Mount, Right Angle
  • Product Status: Obsolete
  • Supply and Demand Status: Limited
  • Package Quantity: 700
  • MSL Level: 1 (unlimited)
  • REACH: Unaffected
  • HTSUS: 8536.69.4040
  • Part Number: 864850-BTFW16R-3RSTE1LF
  • Other Part Numbers: 609-1472-1, 609-1472-1-ND, 609-2472-2, and BTFW16R3RSTE1LF
